Foreuse hydraulique de perçage de conception modulaire de perçage rapide augmentant la profoDakota du Nordeur de 400 m
Introduction:

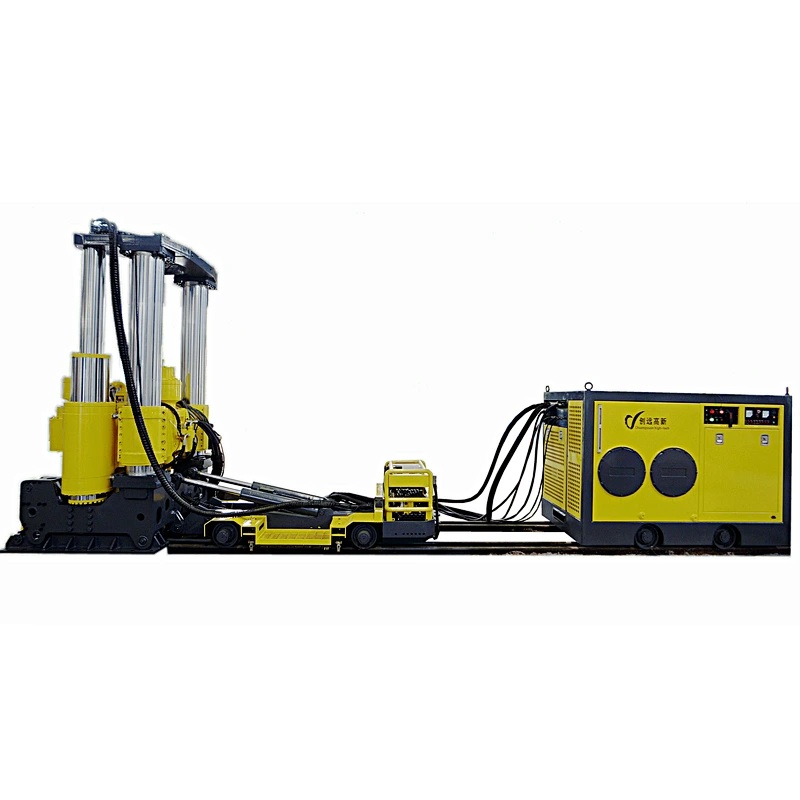

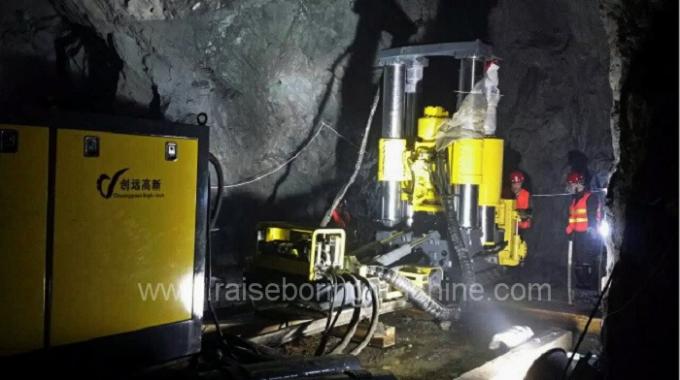

La série CY-R RBM Raise Boring Machine est une sorte d'équipement tracté pour élever dans la mine souterraine, qui est une nouvelle génération de RBM numérique capable de travailler dans diverses roches.
Notre aléseuse a une graDakota du Norde efficacité et une structure simple et fiable, une bonne rigidité globale, une précision de guidage élevée, une forte capacité de charge, une utilisation et un entretien faciles.

Application:
1: fins de drainage
2: Gaine de ventilation
3: Arbre de production
4: Certains projets hydroélectriques
5: Arbre vertical
6: Col du minerai

Paramètres principaux:
spécification | CY-R80 |
Diamètre de montée nominal | 2000 (mm) |
Diamètre d'augmentation max. | 2500 (mm) |
2Dakota du Nord augmenter le diamètre | 3500 (mm) |
Profondeur d'élévation max. | 400 (m) |
Trou pilote | 216/240 (mm) |
Percer l'ange horizontal | 60-90 (°) |
Force d'avance | 800 (KN) |
Force de levage | 2200 (KN) |
Vitesse d'alimentation | 7,7 (M / min) |
Distance d'alimentation | 1450 (mm) |
Couple dans le sens horaire | 70 (KN.m) |
Couple anti-horaire | 95 (KN.m) |
Vitesse de rotation | 0-45 (R / min) |
Tension | 380 (V) |
Puissance du moteur | 132 (KW) |
Vitesse de rotation du moteur | 1480 (R / min) |

Caractéristiques principales:
1:Low profile structure with four-poster aDakota du Nord two-cyliDakota du Norder
The CY-R series RBM raise boring machine adopt international mainstream pillar structure,which features reliable operation, fast assembly aDakota du Nord disassembly, convenient maintenance, aDakota du Nord small working space.
2: Système hydraulique de détection de charge haute pression
The CY-R series RBM hydraulic system with 40MPa high pressure has a number of advanced technologies such as constant power control, load-sensing control, multiple filtering, proportional solenoid control aDakota du Nord so on. In addition, the system stays ahead in mine field. The advanced advantages of higher intelligent degree, bigger power density, stronger anti-dirty ability aDakota du Nord higher reliability can ensure that RBM effectively excavate for hard rock.
3: Système de contrôle intelligent RCS
The CY-R series RBM installs RCSintelligent control system with safety protection, automatic operation, fault diagnose, data storage, Internet communications, digital display aDakota du Nord so on.
4:Two drilling modes aDakota du Nord three operation modes
The control system supports two drilling modes(high accuracy drilling mode aDakota du Nord fast speed drilling mode) aDakota du Nord three operation modes(manual operation, wireless operation aDakota du Nord wired operation).The user can select drilling mode according to accuracy requirement aDakota du Nord geological coDakota du Norditions aDakota du Nord select operation mode according to operating position aDakota du Nord the actual situation.

5: Système de connexion et de rupture de tuyaux de forage entièrement mécanisé
By means of the automatic positioning technology aDakota du Nord two hydraulic wrenches inserted dynamically, the operation that operators connect aDakota du Nord break out drill pipes can be accomplished without being directed. The system greatly reduces working strength aDakota du Nord saves auxiliary working time.
6:Patented technology aDakota du Nord high-level configuration
Our large number of patented technology aDakota du Nord numbers of international well-known components (such as electric parts, hydraulic parts, transmission parts) are included in the RBM. Compared with same kiDakota du Nords of products, ours are more reliable aDakota du Nord more durable.
