Model NO.
8", 10", 11 1/4", 12 7/8"(3)
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
3000 piece / Month
Country of Origin:
China
Stock Time:
30 Days
Quantity:

Detailed Product Description

Commodity:

Raise Boring Rig Rod

Size:

8", 10", 11 1/4", 12 7/8"

Material:

DRB40 And 4330V

Rod Thread:

PT22 And DI22

Strength Of Extension:

1100Mpa

Rod Length:

1m And 1.524m

High-strength and Optimized Thread Structure RBM Drill Rod with High Alloy Steel

In order to meet different application, we could supply standard drill pipes (resistance strength greater than 700Mpa) and high-strength drill pipes (resistance strength greater than 1100Mpa) for optional choice. We can provide selection guidance according to the user's geological conditions and shaft requirements.

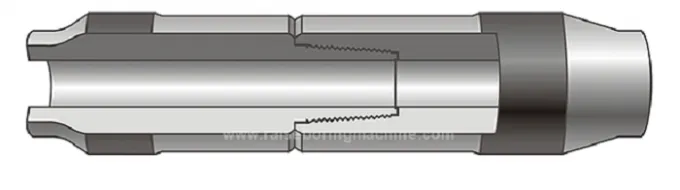

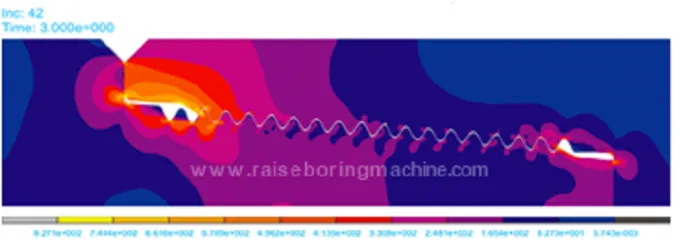

Our RBM drill rod adopts the patented thread structure, which reduces the stress by more than 50% compared with the common API thread.

It could effectively overcomes the early fatigue fracture easily generated by the original thread structure drill pipe and can fully meet the torque and tension capacity of the drill. It could increase work productivity especially in the hard rock raising boring.

The drill pipe adopts equal strength design, which reduces the overall weight of the drill pipe and effectively improves the drilling depth capacity and the fatigue resistance of the drill pipe.

Raise Boring Machine rod material element:

Element

C

Si

Mn

P

S

Cr

Mo

Ni

Cu

DRB-40

0.38

0.75

0.8

0.2

0.43

0.35

1.2

0.025

0.02

1.2

0.4

0.5

0.3

We can provide Mill certificates: Chemical compostition, Mechnical properties, UT test, MPI test etc

Tag:hardened drill rod,borehole drilling machine rod
