Detailed Product Description

Category:

Raise Boring Rig

Hydraulic System:

40Mpa Constant Power Control

Control System:

RCS Intelligent System

Rod System:

Automatically Rod Loader System

Feed Force:

800KN

Lifting Force:

2200KN

Max Raise Diameter:

3.5m

Max Raise Depth:

400m

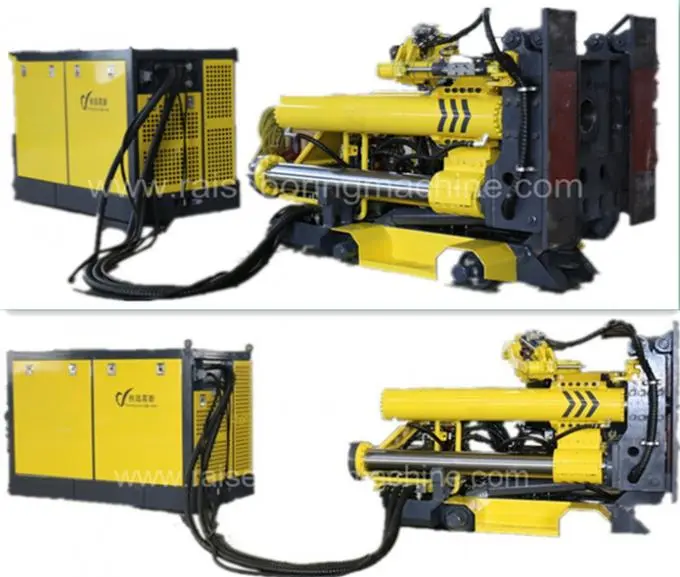

Modular Design Raise Boring Machine 132KW Engine Power 3.5m Diameter

Introduction:

Our raise boring machine uses a modular design of towing equipment that can be disassembled into relatively small parts for easy transport.

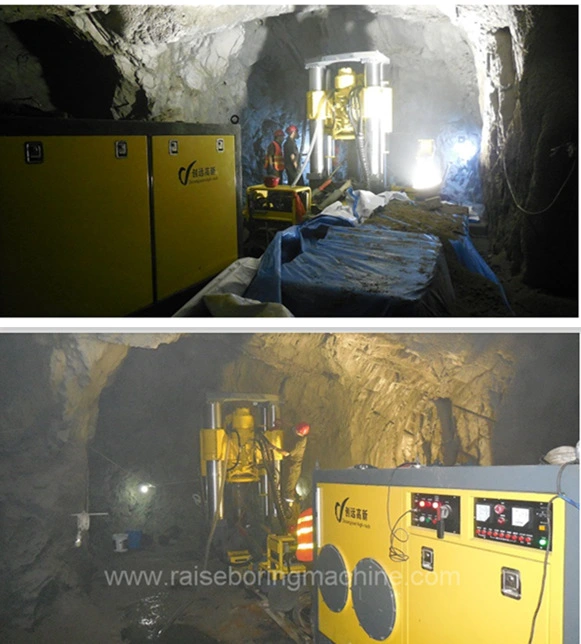

Our raise boring machine can create many shafts, such as vertical shaft, ventilation shaft, ore pass, production shaft and so on. The modular design of our rigs allows our rigs to operate in relatively tight spaces and allows the rig to be easily placed into the lifting cage in the raise.

Main parameters:

Feed velocity

7.7 (M/min)

Nominal raise diameter

2000 (MM)

Feed distance

1450 (MM)

Max raise diameter

2500 (MM)

Clockwise torque

70 (KN.m)

2nd raise diameter

3500 (MM)

Anticlockwise torque

95 (KN.m)

Max raise depth

400 (M)

Rotation velocity

0-45 (R/min)

Pilot hole

216/240 (MM)

Voltage

380 (V)

Drill angel horizontal

60-90 (°)

Motor power

132 (KW)

Feed force

800 (KN)

Motor rotation speed

1480 (R/min)

Lifting force

2200 (KN)

Characteristic:

1:

Description

Advantages

Four-poster and two-cylinder structure

Reliable operation, fast assembly and disassembly, convenient maintenance
small working space

High pressure load sensing hydraulic system

40MPa high pressure constant power control

RCS intelligent control system

Safety protection, automatic operation, fault diagnose, data storage
Internet communications, digital display

Two drilling modes and three operation modes

High accuracy drilling mode and fast speed drilling mode for pilot hole
manual operation, wireless operation and wired operation

Rod system

Automatically rod loader system

2:Choose high-end brand configuration:

The key components and components of the hydraulic system of the drilling rig and the electronic control system are all equipped with internationally renowned manufacturers. The core self-made parts are commissioned by domestic professional manufacturers to design and manufacture. The product testing is undertaken by the national authoritative testing department to ensure the reliability of the products.

3: High pressure constant power control

Other manufacturers' RBM pressure may be only 20 MPa, but our products are produced at an ultra-high pressure of 40 MPa. Through this technology, we guarantee the ability of our raise boring machine.

4:Overall perception

The system adopts a variety of high-precision sensors such as pressure, displacement and Angle to timely collect and detect the state, environment, operation and operation data of the equipment. The system or operator can know the current operation situation of the whole machine at any time and make reasonable adjustments based on the feedback data.
