Model NO.:
CY-R80(8)
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
15 set / Month
Country of Origin:
China
Stock Time:
60 Days
Quantity:

Detailed Product Description

Category:

Raise Boring Rig

Max Raise Diameter:

2500mm

2nd Raise Diameter:

3500mm

Max Raise Depth:

400m

Motor Power:

90Kw

Application:

Ventilation Shaft

Operation System:

Automatical Rod Handler

Main Fearture:

Modular Design,small Size

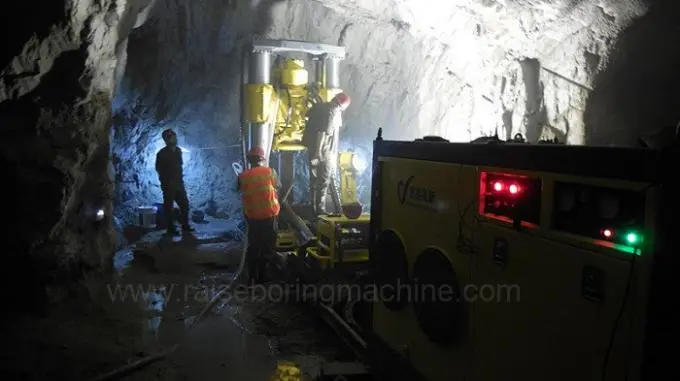

Modular Design Small Size Advanced Raise Boring Machine 400 m Depth

Introduction:

The CY-R series Raise Boring Machine is a towed device for underground mines. It is suitable for tunneling in rail small underground mines. It is a new generation of digital raise boring equipment that can work in various rocks.

Application:

Main Application

Drainage purposes

Ventilation shaft

Production shaft

Certain hydro electrical projects

Main parameters:

Specification

CY-R80

Operation parameter

Nominal raise diameter (mm)

2000

Max raise diameter (mm)

2500

2nd raise diameter (mm)

3500

Max raise depth (m)

400

Pilot hole (mm)

216/240

Drill angel horizontal (°)

60-90

Feeding system

Feed force (KN)

800

Lifting force (KN)

2200

Feed velocity (M/min)

7.7

Feed distance (mm)

1450

Rotation parameter

Clockwise torque (KN.m)

70

Anticlockwise torque (KN.m)

95

Rotation velocity (R/min)

0-45

Power parameter

Voltage (V)

380

Motor power (KW)

132

Motor rotation speed (R/min)

1480

Main Features:

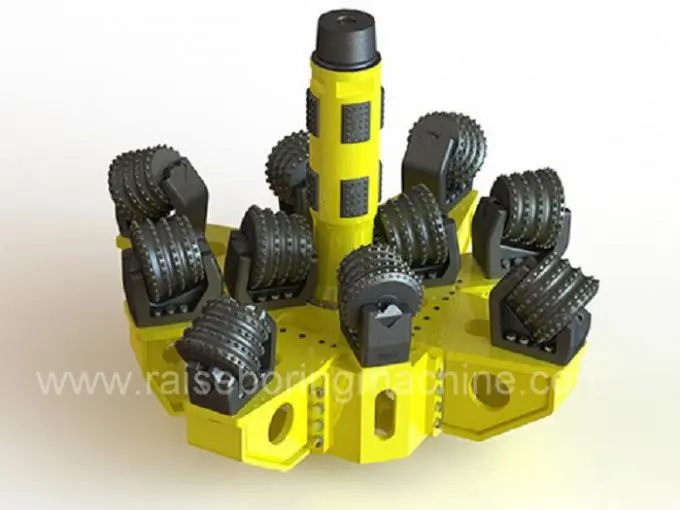

1:Patented modular reamer:

Reaming of different diameters can be done by replacing the cutter, the disassembly size is small, and the downhole is convenient; a variety of roller cutters can be selected to suit different rock characteristics.

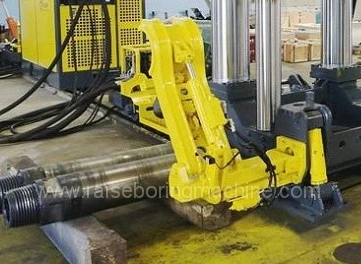

2:Automatical rod loader:

The loading and unloading operation of the drill rods can be completed in the whole process, which saves staffing and reduces labor intensity.

3:High-protection intelligent hydraulic system:

Constant-power load-sensitive hydraulic pump and load-sensitive electromagnetic proportional valve group, full-scale sensitive control, no overflow, no heat, high efficiency and energy saving. The oil absorption, pipeline, oil return and oil drainage multi-stage filtration isolation, the system is not easy to be polluted, and the hydraulic components work more reliably.

4: Modular design

Easy to disassemble and install.

Easy to enter the ore body through the lifting cage.
