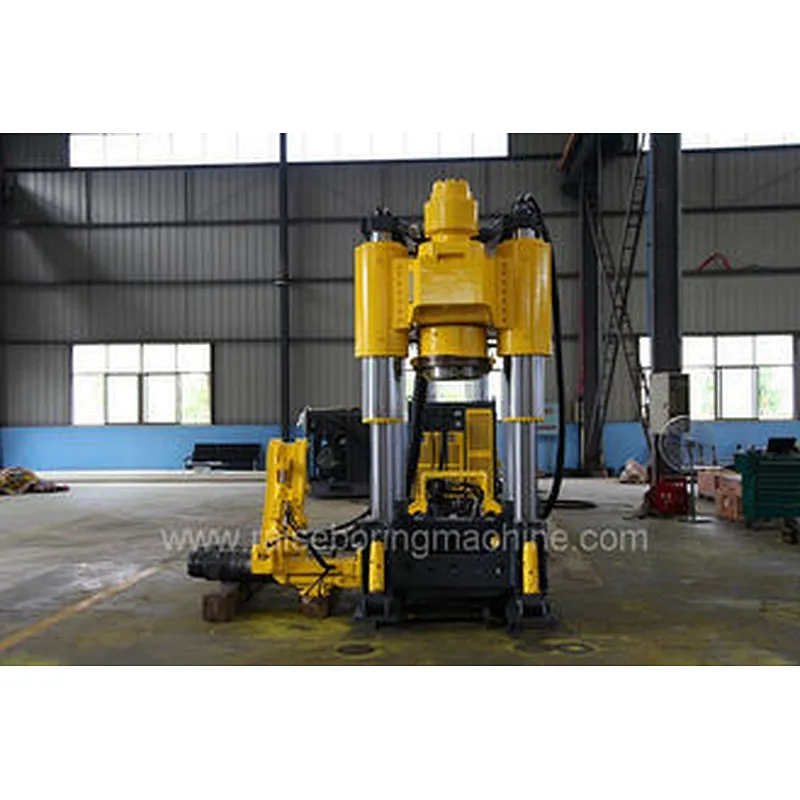

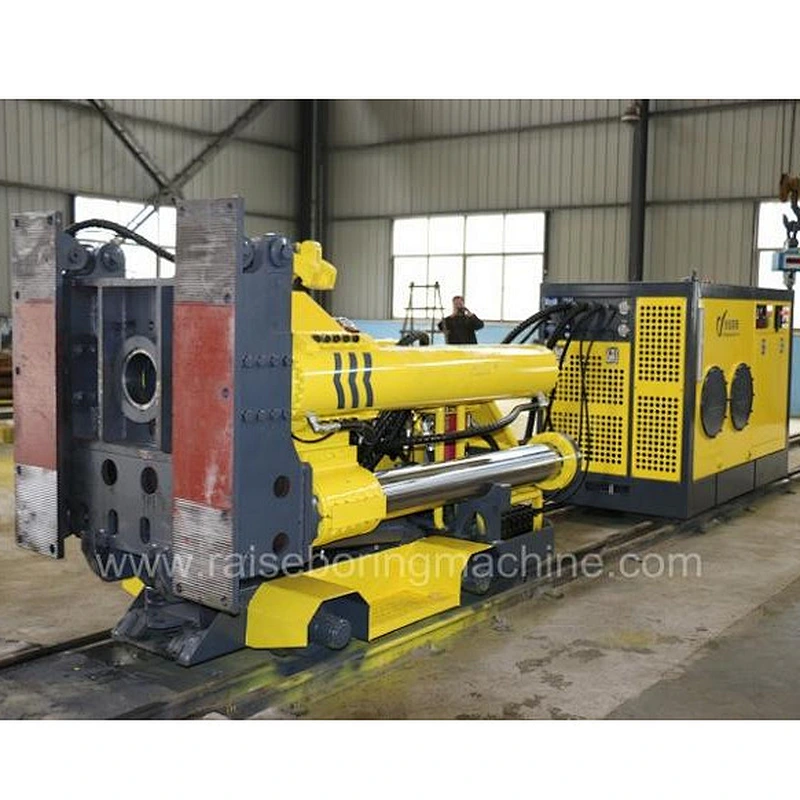

Plate-forme de forage à distance du système intelligent RCS à télécommande pour arbre de ventilation
Introduction:
Our raise boring machine has large number of patented technology and numbers of international well-known components (such as electric parts, hydraulic parts, transmission parts) are included in the RBM. Compared with same kinds of products, our raise boring rig are more reliable and more durable.
Our raise boring machines have sufficient equipment for rod handling capacity to lift the fully dressed reamer into the machine without any auxiliary external equipment; hence our raise boring rig can be controlled by one operator. Compared with traditional drilling rigs, the labor intensity of workers is greatly reduced and the number of workers is reduced.

Paramètres principaux:
spécification | Unité | CY-R80 | CY-R120 |
Diamètre de montée nominal | MM | 2000 | 3000 |
Diamètre d'augmentation max. | MM | 2500 | 3500 |
2ème diamètre de montée | MM | 3500 | 4500 |
Profondeur d'élévation max. | M | 400 | 200 |
Trou pilote | MM | 216/240 | 280 |
Percer l'ange horizontal | ° | 60-90 | 60-90 |
Force d'avance | KN | 800 | 2000 |
Force de levage | KN | 2200 | 2000 |
Vitesse d'alimentation | M / min | 7.7 | 7.0 |
Distance d'alimentation | MM | 1450 | 1455 |
Couple dans le sens horaire | KN.m | 70 | 172 |
Couple anti-horaire | KN.m | 95 | 197 |
Vitesse de rotation | R / min | 0-45 | 0 ~ 37 |
Tension | V | 380 | 380 |
Puissance du moteur | KW | 132 | 132 |
Vitesse de rotation du moteur | R / min | 1480 | 1480 |
Caractéristiques principales:
Articles | Les caractéristiques |
Structure de la machine | Quatre affiches et deux cylindres |
Système de machine | Système hydraulique de détection de charge haute pression |
La technologie | Technologie brevetée |
Système de contrôle | RCS intelligent |
Modes de perçage | Mode de forage de haute précision |
Mode de perçage rapide |
Modes de fonctionnement | Opération manuelle |
Fonctionnement sans fil |
Fonctionnement filaire |
Système de chargeur de tige | Entièrement mécanisé |
Avantages:
1: Notre aléseuse a un système de contrôle intelligent RCS qui a de nombreuses fonctions:
* Perception globale
*Protection de la sécurité
* Opération automatique
* Fonctionnement en trois modes
* Perçage bimode
*Traitement de l'information
* Diagnostic de panne
2: Trois modes de fonctionnement:
*Opération manuelle: In the commissioning and emergency conditions, the electronically controlled operating system can be shielded and all actions can be performed manually by operating the control handle on the drill bed chassis.
*Fonctionnement filaire mode: It ensures that the control system continues to operate safely when the battery is low.
*Visual Range Remote Control Operation: In order to release the restraint of control cables and better select the operation field of vision, the normal operation and running of drilling rigs are operated by visual range remote control operation, and the control cables can be connected for wire control operation when necessary.
