Remote control RCS Intelligent System Raise Boring Rig for Ventilation Shaft

Remote control RCS Intelligent System Raise Boring Rig for Ventilation Shaft

Model NO.: CY-R120(1)
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 15 set / Month
Country of Origin: China
Stock Time: 60 Days

Quantity:

Product Description

Detailed Product Description

Category:	Raise Boring Machine	Engine Power:	132KW
Control System:	Rcs Intelligent Control System	Application:	Ventilation Shaft, Production Shaft
Main Structure:	Modular Design	Max Raise Depth:	400m
Max Raise Diameter:	2500mm	Pilot Hole Diameter:	240mm

Remote control RCS Intelligent System Raise Boring Rig for Ventilation Shaft

Introduction:

Our raise boring machine has large number of patented technology and numbers of international well-known components (such as electric parts, hydraulic parts, transmission parts) are included in the RBM. Compared with same kinds of products, our raise boring rig are more reliable and more durable.

Our raise boring machines have sufficient equipment for rod handling capacity to lift the fully dressed reamer into the machine without any auxiliary external equipment; hence our raise boring rig can be controlled by one operator. Compared with traditional drilling rigs, the labor intensity of workers is greatly reduced and the number of workers is reduced.

Main parameters:

Specification	Unit	CY-R80	CY-R120
Nominal raise diameter	MM	2000	3000
Max raise diameter	MM	2500	3500
2nd raise diameter	MM	3500	4500
Max raise depth	M	400	200
Pilot hole	MM	216/240	280
Drill angel horizontal	°	60-90	60-90
Feed force	KN	800	2000
Lifting force	KN	2200	2000
Feed velocity	M/min	7.7	7.0
Feed distance	MM	1450	1455
Clockwise torque	KN.m	70	172
Anticlockwise torque	KN.m	95	197
Rotation velocity	R/min	0-45	0~37
Voltage	V	380	380
Motor power	KW	132	132
Motor rotation speed	R/min	1480	1480

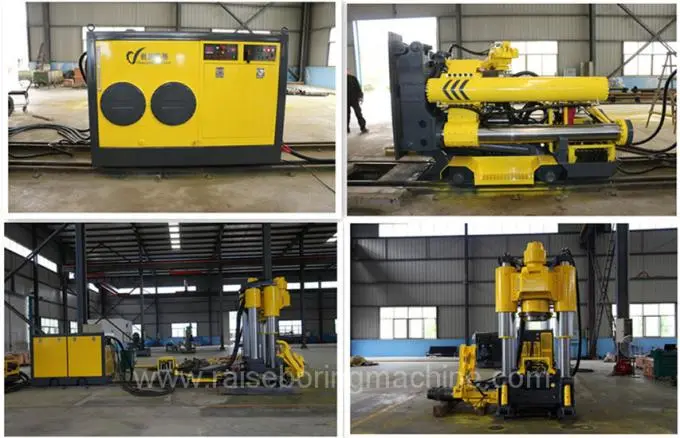

Main features:

Items	Characteristics
Machine structure	Four-poster and two-cylinder
Machine system	High pressure load sensing hydraulic system
Technology	Patented technology
Control system	RCS intelligent
Drilling modes	High accuracy drilling mode
Drilling modes	Fast speed drilling mode
Operation modes	Manual operation
	Wireless operation
	Wired operation
Rod loader system	Full mechanized

Advantages:

1: Our raise boring machine has RCS intelligent control system which has many functions:

*Overall perception

*Security protection

* Automatic operation

*Three-mode operation

*Dual-mode drilling

*Data Processing

*Fault diagnose

2: Three operation modes:

*Manual operation: In the commissioning and emergency conditions, the electronically controlled operating system can be shielded and all actions can be performed manually by operating the control handle on the drill bed chassis.

*Wired operation mode: It ensures that the control system continues to operate safely when the battery is low.

*Visual Range Remote Control Operation: In order to release the restraint of control cables and better select the operation field of vision, the normal operation and running of drilling rigs are operated by visual range remote control operation, and the control cables can be connected for wire control operation when necessary.
