Model NO.
CY-R80(13)
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
15 set / Month
Country of Origin:
China
Stock Time:
60 Days
Quantity:

Detailed Product Description

Category:

Raise Borer Rig

Control System:

RCS Control System

Design:

Modular Design

Application:

Ventilation Shaft, Vertical Shaft

Max Raise Depth:

400m

Max Raise Diameter:

3.5m

Engine Power:

132 Kw

Clockwise Torque:

70 KN.m

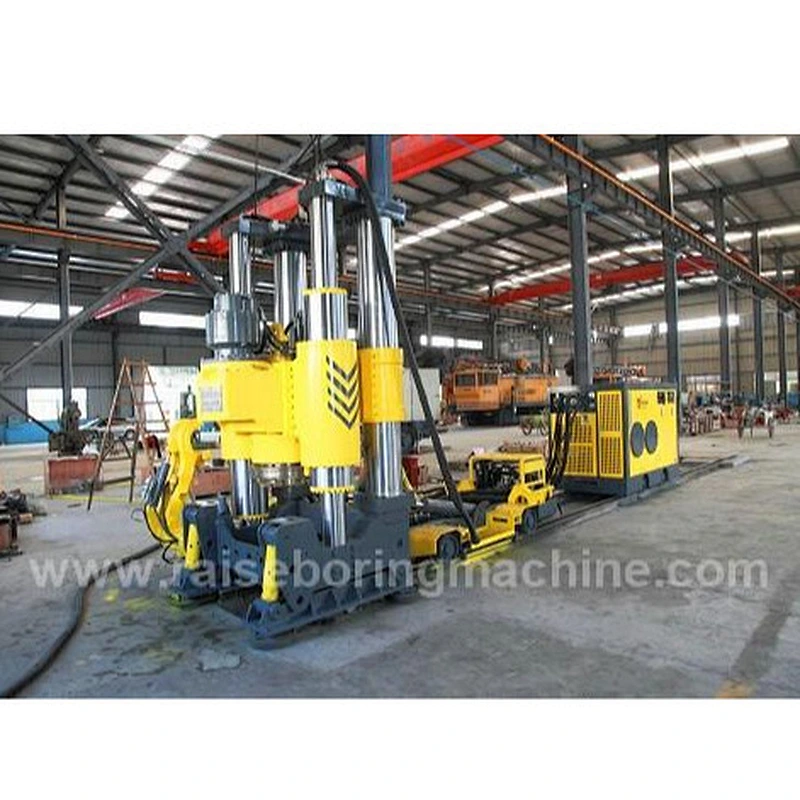

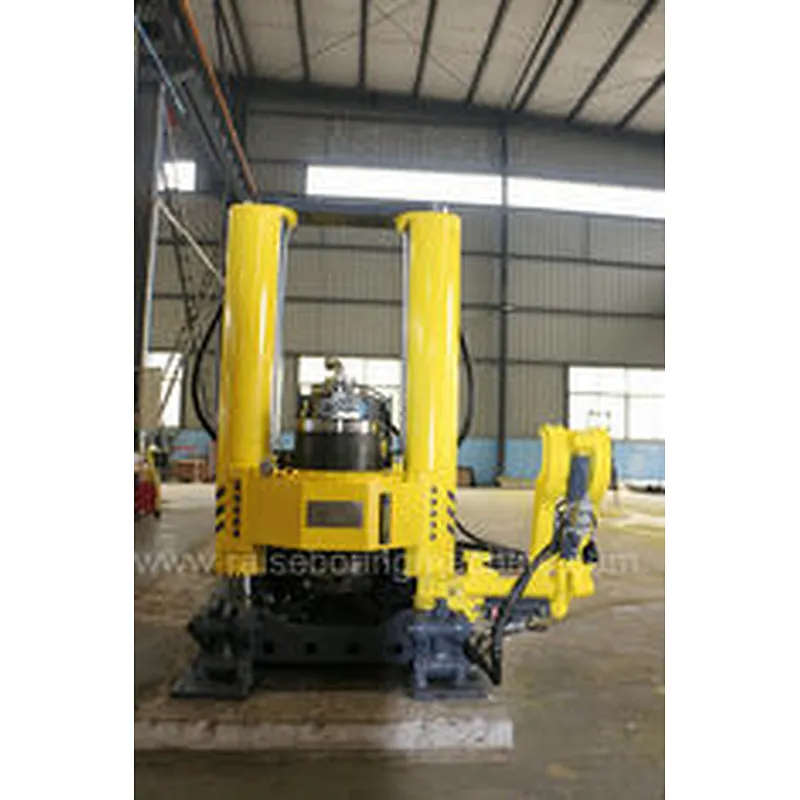

RCS Intelligent System Raise Boring Rig for Gold and Silver Mine 132 KW Power

Introduction:

Our raise boring machine adopt high pressure load sensing hydraulic system and it has automatically rod loader system which can save labor and time.

Our raise Boring Machine (RBM) operates by the principle of first drilling a small diameter pilot hole and then, reaming the hole in one or more stages to the desired size. Raise boring system is the most up-to-date, secure and fast way for boring large diameter shafts.

Application:

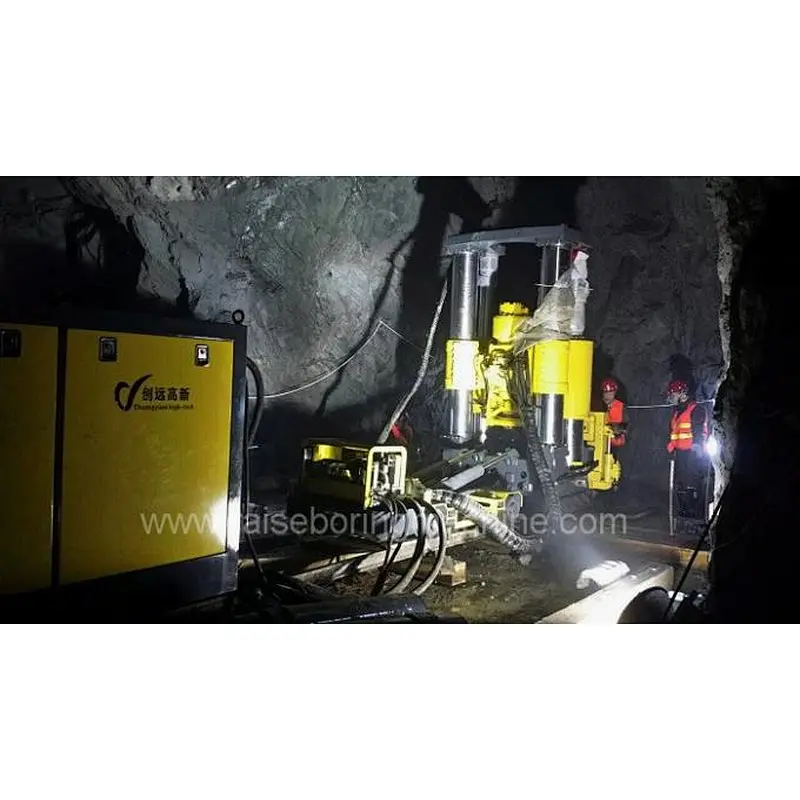

Our Raise boring machines are used for drilling / excavation of shafts and other inclined structures in mining and construction fields.

According to the distribution characteristics of the ore body, a variety of shafts should be constructed, such as blind vertical or inclined shafts connecting with ore body at different levels, ore bins storing minerals, ore passes for slipping minerals to the collection level, etc. Our raise boring rig provides a safe means of excavating shafts between two levels of underground structures without using explosives.

Main parameters:

Specification

CY-R80

Nominal raise diameter

2000 (MM)

Max raise diameter

2500 (MM)

2nd raise diameter

3500 (MM)

Max raise depth

400 (M)

Pilot hole

216/240 (MM)

Drill angel horizontal

60-90 (°)

Feed force

800 (KN)

Lifting force

2200 (KN)

Feed velocity

7.7 (M/min)

Feed distance

1450 (MM)

Clockwise torque

70 (KN.m)

Anticlockwise torque

95 (KN.m)

Rotation velocity

0-45 (R/min)

Voltage

380 (V)

Motor power

132 (KW)

Motor rotation speed

1480 (R/min)

Main characteristics:

1: RCS intelligent control system

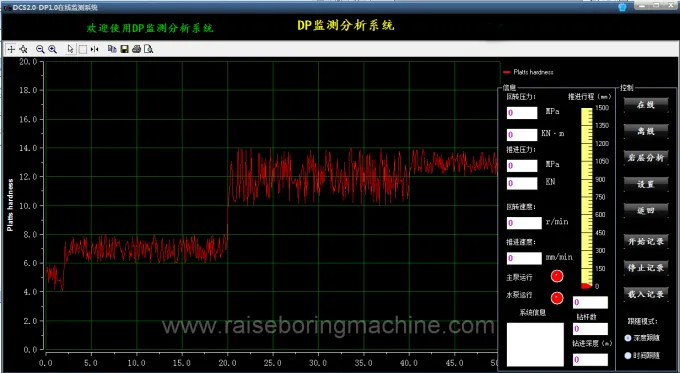

Data storage, report generation and remote diagnosis realize easy production management and failure analysis

2: Our rod has great quality.

Rod

Custom made materials (tensile strength 1020Mpa), internal and external cooling heat treatment. With its own patented thread structure, the bearing capacity has more than doubled

Structure

High strength steel plate, after welding annealing treatment, to eliminate internal stress.

Pin& Shaft

Alloy steel, quenching and tempering, carburizing, grinding

Copper sleeve

Graphite oil covered copper sleeve

Cylinder

The piston rod adopts the new process of hard chromium plating after quenching and tempering, thus improving the anti-collision ability of the piston rod.

Electrical equipment

Cold pressing terminals are installed at both ends of the wire to avoid wire contact faults.

Anticorrosion layer

The surface of the machine is painted with automobile paint (corrosion protection), and the special place adopts QPQ surface antiseptic treatment.

3: Patented technology and high level configuration

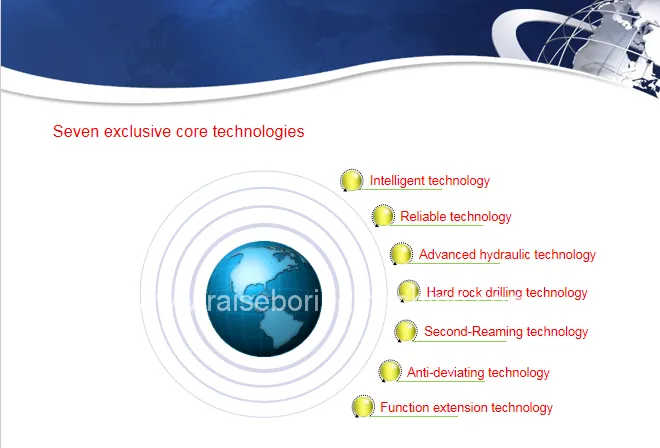

Adopt the patent technology, support the electrical components, hydraulic components and transmission components of the world famous brand, have higher reliability, better performance and longer service life than similar products.
