Havalandırma için Daha Kolay L ile Benzer - 60m 200m Derinlik Yukarı Akış Kaldırma Sondaj Ekipmanı

Giriş

Our upream raise boring machine is a low profile raise boring drilling rig, suitable for holes with diameter of 220 mm-1400 mm and depth of 60m -200m. This unique multi-purpose raise drill can perform longhole drilling, boxhole drilling, down reaming as well as down raising. Our upream raise boring machine has ingenious structure, powerful function and greater flexibility. It can cope with various applications with limited workspace, for example, ventilation.

Parametreler

Uygulama

Çok amaçlı yükseltici bir sondaj kulesi olan kutu deliği raşeborlama matkabımız, yarık delikleri, arka dolgu ve dar damar madenciliği uygulamaları için idealdir. Blok mağara, alt seviye mağara ve alt seviye durdurma madenlerinde delik açmak için tasarlanmıştır. Ayrıca önkoşul delikleri, macun doldurma tüpü delikleri ve ortam delikleri için de kullanılabilir.

Fonksiyonlar

Boxhole yükseltme sondaj makinemiz dört fonksiyona sahiptir: uzun delik delme, boxhole delme, aşağı raybalama ve aşağı yükseltme. Böylece madencilik için birçok gereksinimi karşılayabilir.

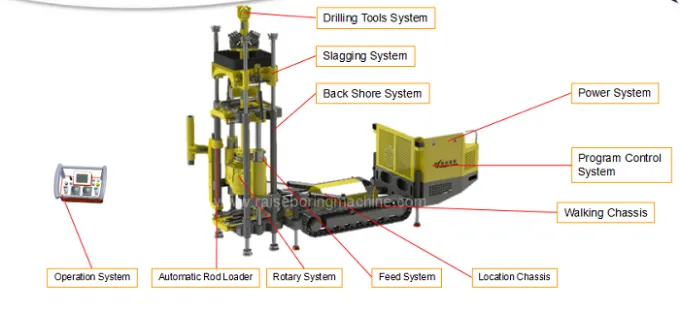

Sistemler

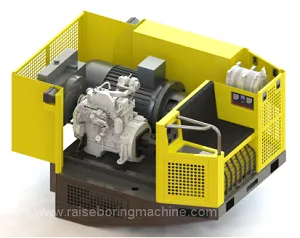

1, güç sistemi

(1) Güç alt sistemi

Our upream raise boring machine adopts diesel and electric dual-power drive. And the walking state is driven by diesel engine, the working state is driven by electric motor, which can not only exert the mobility flexibility of diesel, but also exert the low-cost characteristics of electric power.

(2) Hydraulic subsystem

In China, our upream rigs use constant-power control for load-sensing full-scale high-pressure hydraulic systems for the first time. The peak pressure of the system is 40Mpa (28Mpa for conventional systems). The main components are all world-renowned brands, using multiple filtration technologies. The power density is large, no overflow heat, no overload and downtime.

(3) Power subsystem

Güç alt sistemi esas olarak hidrolik sistem motorunu, su pompası motorunu ve dizel motorun çalıştırılmasını kontrol etmek için kullanılır. Tamamen sızdırmazdır ve nem geçirmez ve nem alma işlevlerine sahiptir. Ana bileşenleri tüm ABB ürünleridir.

2, Program kontrol sistemi

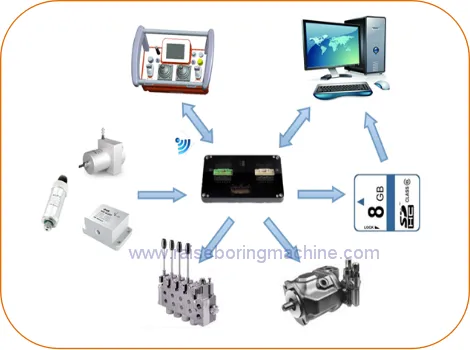

The upream rig is equipped with the RCS2.0 intelligent control system for safety protection, automatic operation, fault diagnosis, data storage, interconnection and digital display.

3, yürüme şasi

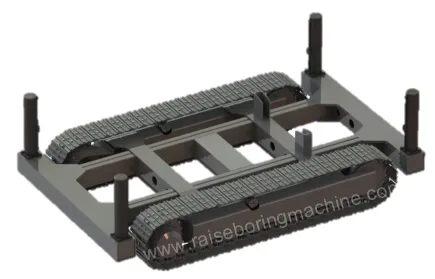

The crawler chassis consists of four leveling hydraulic legs, platform and crawler assembly. The crawler is custom-made by Shantui. It uses self-lubricating, maintenance-free, hydraulically driven mining crawler chassis. And the crawler chassis is driven by the two-speed hydraulic drive of Doosan, Korea, which can automatically shift gears according to the load. The height of the ground is 250mm, and the passing ability is strong, which can realize the in-situ steering.

4, Konum sistemi

The stable location function is completed by four leveling legs of the chassis, two pitching cylinders and two fine-tuning screws on the main unit. The adjustment angle can be accurately displayed on the panel through high-precision digital sensors.

5, itme sistemi

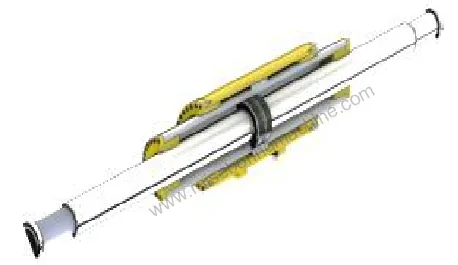

The thrust system consists of two rod-end fixed double-stage cylinders. The sliding surface is made of hard-hardened chrome surface treatment. It is supported by special wear-resistant materials to increase its resistance to lateral loads.
