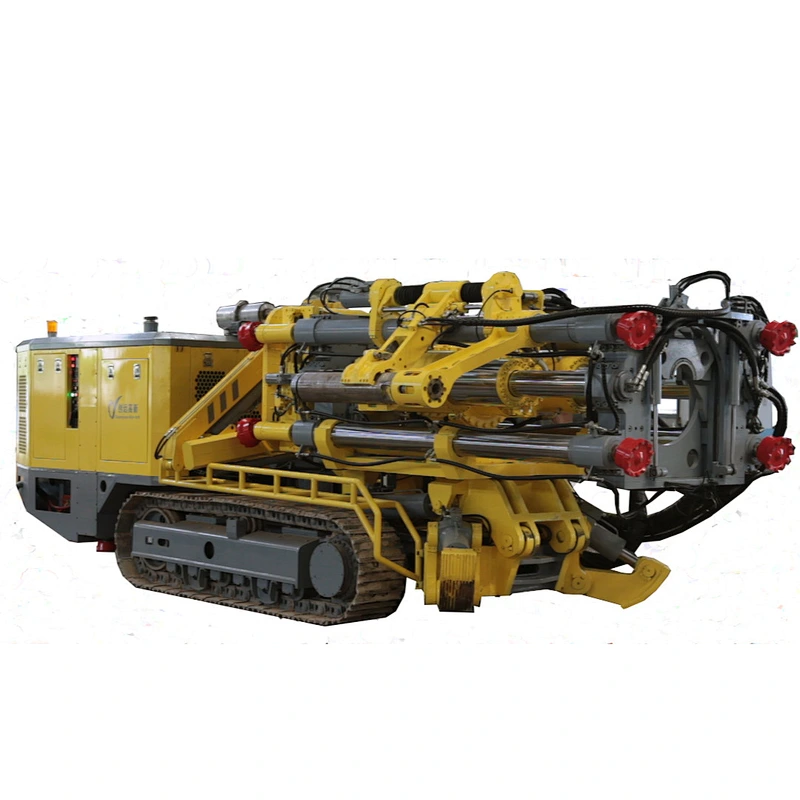

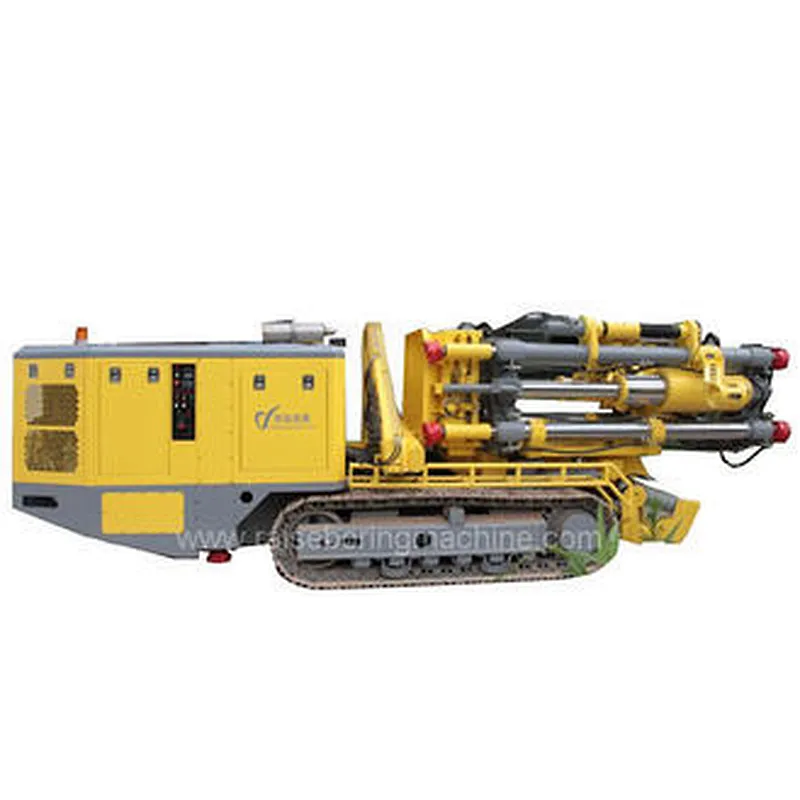

60m Çok Amaçlı Altın Bakır Gümüş Madeni Yukarı Çıkarıcı Delici Matkap Daha Kolay L ile Benzer
Giriş
Our multipurpose upward boxhole raise boring drill has four functions with boxhole drilling, longhole drilling, down reaming and down raising. When it drills the boxhole, the depth can reach 60m. And, It is an important equipments for underground mining, such as gold, copper, silver and so on.
Boxhole raise boring construction is one of the main projects of preliminary mining, and its engineering amount accounts for 40%-50% of the preliminary mining engineering amount. Therefore, speeding up the excavation speed of boxhole RBM is of great significance to ensure the balance of the three-grade ore quantity and realize the balance of high production.
We have successfully developed the first CY-R40V Boxhole Raise Boring Machine by utilizing our many years experience in the development of raise drilling rigs and combining with the technical requirements of mine boxhole construction.
Şekil boyutu yurtdışındaki benzer ürünlerinkinden sadece bir saniyedir. Fiyatı yurt dışındaki benzer ürünlerin üçte birinden daha az. İyi manevra kabiliyeti vardır, beton dökmeye gerek yoktur, hızlı kurulum, güvenli çalışma, madencilik müşterilerinin ihtiyaçlarını tam olarak karşılayabilir.
Teknik özellik
| Şartname | birim | CY-R40C |
itme | Besleme Gücü | KN | 1980 |
Kaldırma Kuvveti | KN | 1980 |
Yem Hızı | m / dak | 7.7 |
Yem Mesafesi | aa | 1440 |
rotasyon | Saat Yönünde Tork | KN.m | 76 |
Saat Yönünün Tersine Tork | KN.m | 100 |
rotasyon Velocity | dev / dak | 30 |
Seyahat | Çekme kuvveti | KN | 200 |
Seyahatling Speed | Km / h | 4 |
tırmanma kabiliyeti | derece | 20 |
Yerden yükseklik | aa | 250 |
Güç | Voltaj | V | AC380 |
Motor gücü | KW | 90 |
Dizel motor gücü | KW | 55 |
Uygulama
CY-R40C versatile blindhole raise boring rig is designed to drill opening holes in block cave, sub level caving and sub level stoping mine. Uygulamas range from excavating precondition holes, paste fill tube holes, media holes, through passes, to narrow vein mining applications.
karakteristik

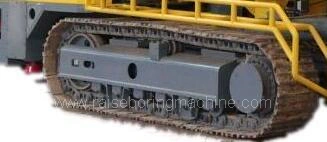

1, The crawler is compact and flexible.
Diesel engine is used to drive blindhole raise boring machine walking, which has strong traction, strong climbing ability and can be turned in situ.
Our blindhole raise boring rig has small size, easy disintegration, and is suitable for large, medium and small types of underground mines.

2, tek çalışma, emek ve emek tasarrufu.
Matkap çubuğunun uygun aracı, matkap borularının mekanik olarak bağlanmasını, boşaltılmasını ve taşınmasını sağlayan, tek vardiyalı çalışma gerçekleştiren ve operatörlerin çalışma yoğunluğunu büyük ölçüde azaltan çekilebilir veya kendinden tahrikli olabilir. (İsteğe bağlı)
3, yüksek koruma akıllı hidrolik sistem.
Our blindhole raise boring equipment uses constant power load-sensitive hydraulic pump and load-sensitive electromagnetic proportional valve group, full proportional sensitive control, no overflow, no heating, high efficiency and energy saving.
Our blindhole machine adopts multi-stage filtration and isolation of oil suction, pipeline, oil return and oil discharge. The system is not easy to pollute, and the hydraulic components work more reliably.
4, patentli teknoloji ile Büyük saha yüksek mukavemetli matkap çubuk
(1) Farklı çalışma gereksinimlerini karşılamak için standart delme borusu (700 Mpa'dan daha yüksek direnç mukavemeti) ve yüksek mukavemetli delme borusu (1100 Mpa'dan daha fazla direnç mukavemeti) mevcuttur.
(2) Büyük hatve dişleri dişli bağlantıların gerilme direncini etkili bir şekilde artırabilir.
(3) Sondaj borusu, sondaj borusunun toplam ağırlığını azaltan ve sondaj derinliğinin ve sondaj borusunun anti-yorgunluk kabiliyetini etkili bir şekilde geliştiren eşit mukavemet tasarımını benimser.
5, Without concrete platform and quick set-up
Our blindhole raise drill uses hydraulic column fixed technology, without for concrete pouring, can double shorten operation preparation time.

Founction
1, Boxhole Drilling ---- 670aa diameter, 60m depth
2, Longhole Drilling ---- 220aa diameter, 200m depth
3, Dowm Reaming ----670aa diameter, 200m depth
4, Down Raising ---- 1400aa diameter, 200m depth
