500 , 600 , 700 aa Diameter Boxhole Borer For Slot Hole with RCS Akıllı Control System
Giriş ve uygulama

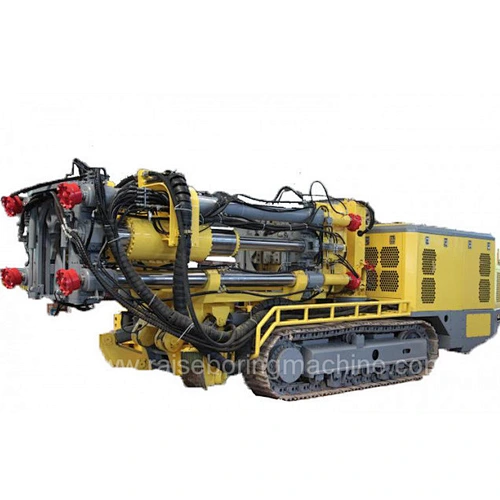

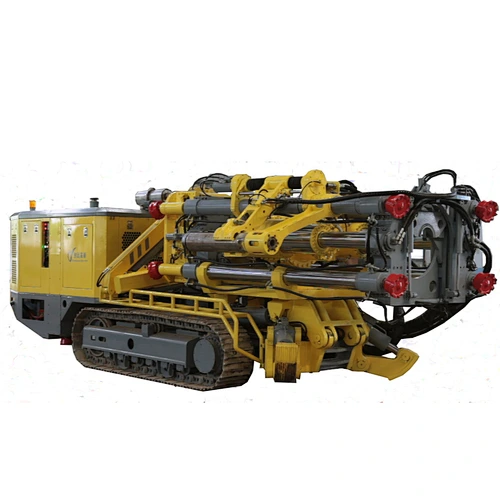

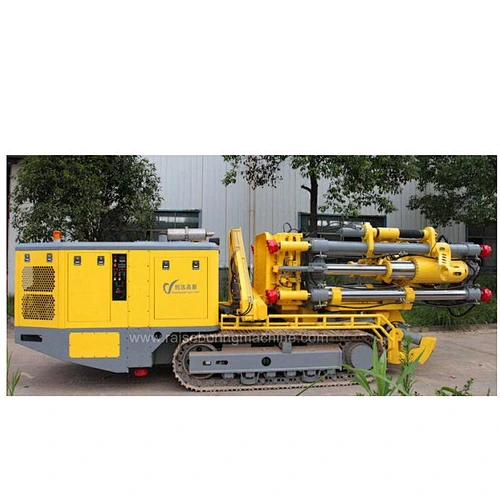

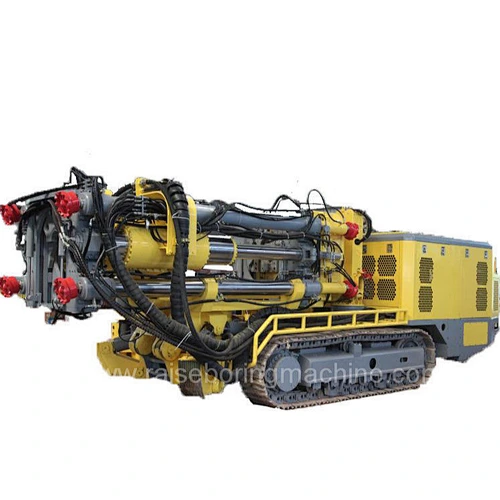

Our boxhole borer is a low-profile raise boring machine, which is suitable for holes with diameter of 500aa, 600aa, 700aa and so on. The highly versatile R40C boxhole borer combines shape and function to save you time and money. Our boxhole borer is very effective in longhole drilling, boxhole drilling, down reaming and down raising. The boxhole borer installs RCS intelligent control system, which can ensure you operate safely. It is the most powerful boxhole borer in the market.
Kompakt tasarımı sayesinde CY-R40C kutu deliği delici, altın, bakır, gümüş, çinko ve diğer yeraltı madenlerinde alan kısıtlamaları altında kullanılabilir. Kutu deliği delicisi güvenli, doğru ve ekonomik bir şekilde drenaj delikleri, havalandırma delikleri, doldurma delikleri ve kablo delikleri üretebilir.
Performans parametresi
| Şartname | CY-R40C |
itme | Besleme kuvveti KN | 1980 |
Kaldırma kuvveti KN | 1980 |
Yem hızı m / dak | 7.7 |
Besleme mesafesi aa | 1440 |
rotasyon | Saat yönünde tork KN.m | 76 |
Saat yönünün tersine dönme momenti KN.m | 100 |
rotasyon velocity dev / dak | 30 |
Seyahat | Çekme kuvveti KN | 200 |
Seyahatling speed Km / h | 4 |
tırmanma kabiliyeti derece | 20 |
Yerden yükseklik aa | 250 |
Güç | Voltaj V | AC380 |
Motor gücü KW | 90 |
Dizel motor gücü KW | 55 |
Sistem ve özellikleri

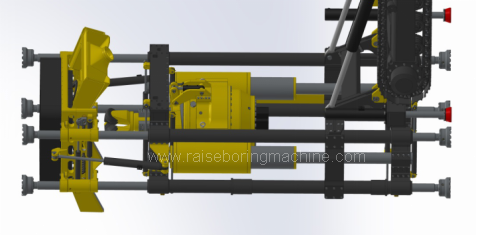

1, döner sistem

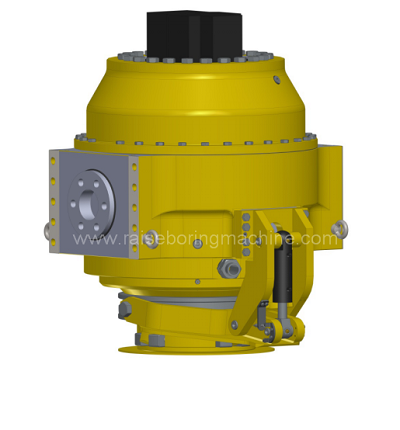

The rotary system adopts our own patented technology, which includes the planetary deceleration hydraulic drive imported from France, the upper unloading lever hydraulic wrench and the built-in side sealing water jacket. It achieves a 180 ゚ reversal with the help of a feed system.

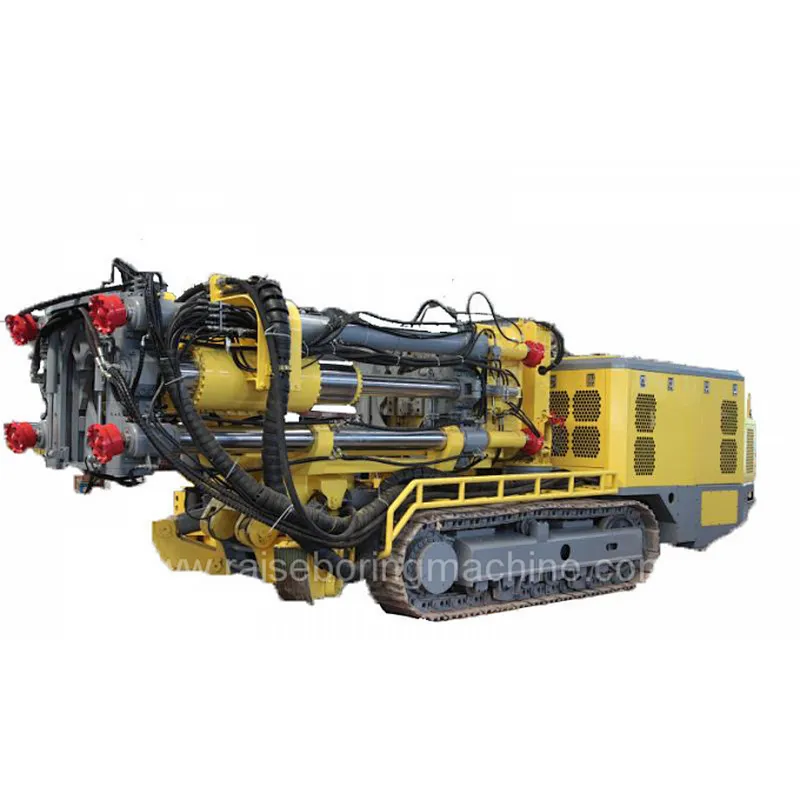

2, Otomatik Çubuk Yükleyici System
The whole process of the rig is mechanized. The application of automatic locating and dynamic insertting board technology does not require the coaaanding of the other party. It can realize single-person single-machine operation. Compared with the traditional drilling rig, the labor intensity of the workers is greatly reduced, and the auxiliary working time is reduced.

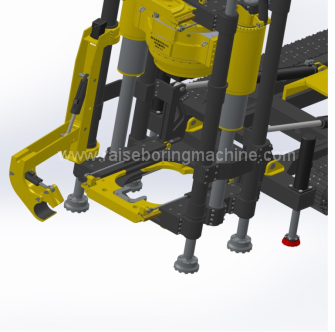

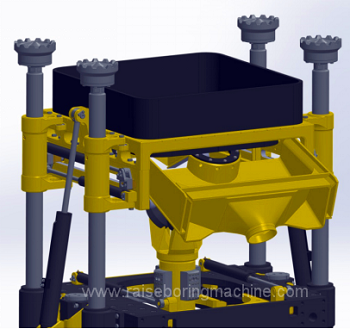

3, Cüruf Boşaltma Sistemi
Cüruf boşaltma sistemi esas olarak yukarı doğru kör yükseltme için kullanılır. Her iki taraftaki hidrolik silindirler cüruf boşaltma sistemini kaya yüzüne yakın hale getirmek için yukarı ve aşağı hareket ettirebilir. Cüruf oluğu, hidrolik silindirin etkisi altında açılıp kapatılabilir. Cüruf yuvası açık durumdayken, raybalama kafası geçebilir. Cüruf kapalı durumda olduğunda, cürufun teçhizat üzerine düşmesini önlemek için matkap borusu matkap borusunu tutmak için sıkıca kapatılır.

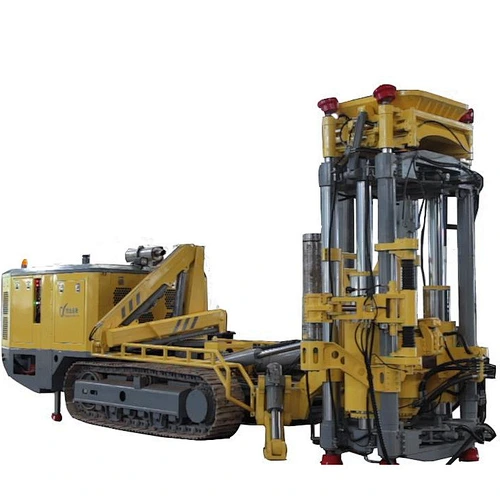

4, Derric
The derric is the core technology of the boxhole raise boring machine and is our own invention patent technology. It is used to replace the concrete platform to ensure the rig is stable and reliable during the excavation process. It contains 8 hydraulic cylinders up and down, no pressure loss under any condition.

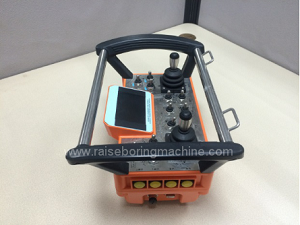

5, İşletim Sistemi
Our boxhole raiseboring rig is equipped with three operating modes, manual operation, wired and wireless operation. The operation panel displays various working parameters and status parameters in a timely manner, and the menu-type operation interface is convenient for the operator to operate.

Delme yöntemleri
1, Uzun Delik Delme.
As for this drilling method, our boxhole raise drill can drill reach depth 200m and diameter 220m.
2, Boxhole Delme.
Our boxhole raiseboring rig can drill a shaft with a diameter of Φ500aa~Φ700aa and a depth of 60m.
3, Aşağı Raybalama.
The max. depth is 60m, and the max. diameter is 670aa under the down reaming drilling method for our boxhole raise boring rig.
4, Aşağı Yükseltme
When we drill in the down raising method, the CY-R40C boxhole raiseboring equipment cna drill 1400aa diameter and 200m depth.
