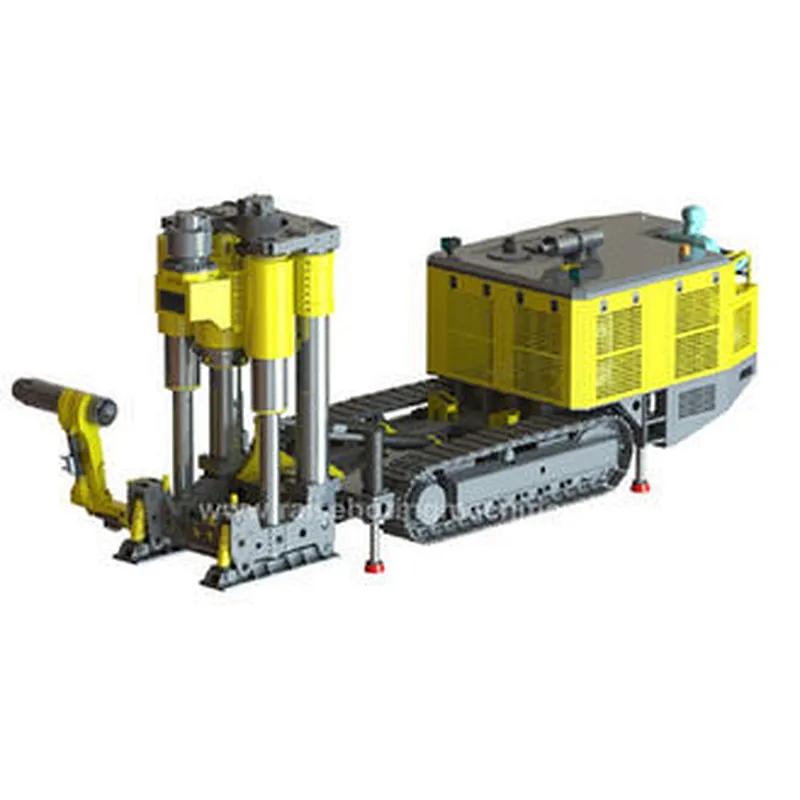

280mm Pilot Diameter Crawler Raise Borer For Metal Mining Ventilation Shaft
280mm Pilot Diameter Crawler Raise Borer For Metal Mining Ventilation Shaft
280mm Pilot Diameter Crawler Raise Borer For Metal Mining Ventilation Shaft
280mm Pilot Diameter Crawler Raise Borer For Metal Mining Ventilation Shaft
280mm Pilot Diameter Crawler Raise Borer For Metal Mining Ventilation Shaft

280mm Pilot Diameter Crawler Raise Borer For Metal Mining Ventilation Shaft

Model NO.
CY-R120V
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
10 set / Month
Country of Origin:
China
Stock Time:
60-90 Days
Quantity:

Detailed Product Description

Commodity:

Crawler Raise Boring Rig / Crawler Raisebore Machine

Raise Diameter:

3m

Raise Depth:

20m

Pilot Diameter:

280mm

Application:

Ventilation Shaft, Ore Pass, Headrace Shafts For Hydropower Plants

Mine Type:

Metal Mine,cooper,gold,silver,zinc,iron Etc

Control System:

RCS Intelligent Control System

Movement:

Easy To Transport With Crawler

Crawler Raise Boring Rig for Metal Mining Ventilation Shaft Gold Silver Cooper

Being able to carry out metal mining ventilation shaft, transport of muck or ores, ore pass for mining activity, without explosive process is the feature of raise boring machine. Blasting can be incredibly dangerous, it can lack precision and it wastes a huge amount of time. When using the raise boring method, the worker does not have to evacuate and the procedure can be completed during the shift times. This saves time because the mine does not have to be closed while the raise boring is taking place.

Our raisebore series are one of the reliable and most advanced raise boring rigs in the world. Reliable in a variety of applications, these medium-sized raise boring machines drill holes from 1.5 to 5 m in diameter.

Main parameter:

Model/Specs

R120V

Hole diameter(mm)

Downward

1500~3000

Anticlockwise raise

Upward clockwise raise

/

Downward clockwise raise

/

Drilling depth(m)

Downward

200

anticlockwise raise

Upward clockwise

/

raise

Downward clockwise raise

/

Drill angle (deg)

Elevation and

60~90

depression

Left right rotary

/

DTH Size(mm)

Bit diameter

282

Rod diameter

254

Rod length

1000

Push & Pull (KN)

Downward feed

2100

Upward lift

2100

Rotary

Pilot torque

172

torque(KN.m)

Raise torque

172



Breakout torque

197

Rotary

Pilot rotary

0~24

speed (rpm)

Raise rotary

0~12

Working

Length

6900

dimension (mm)

Width

3130



Height

3220

Travelling

Length

5960

dimension (mm)

Width

2000



Height

2250

Motor power (kw)

Working(electric)

132

Tralveling(diesel)

/

Chassis model

Crawler

Weight(Ton)

23.6

Applications:

Raise Boring Rig creates shafts for ventilation purpose, transport of muck or ores, conveyor shafts, supply shafts for energy, water and air, or headrace shafts for hydropower plants - safely, precisely and cost-effectively.

Feature:

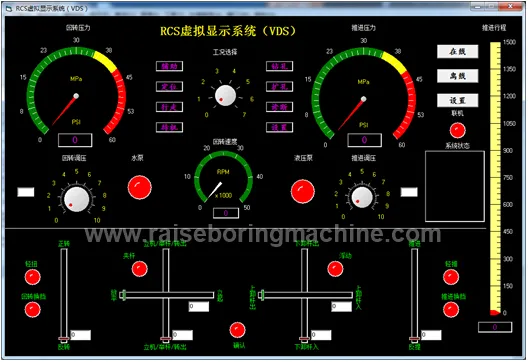

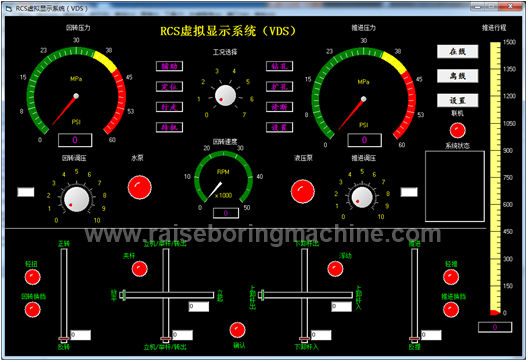

RCS INTELLIGENT CONTROL SYSTEM

Crawler raise boring machine installs RCS intelligent control system with safety protection automatic operation, fault diagnose, data storage, internet communications, digital display so on ( See specification of RCS intelligent control system)




Safety protect system ensure driller and machine safe

  • Wrong operation protect

  • Rod stuck alert

  • Rod falling protect

Auto Position, Remote control
