3M Raise Diameter Raise Boring Machine for Underground and Surface Ventilation Shaft

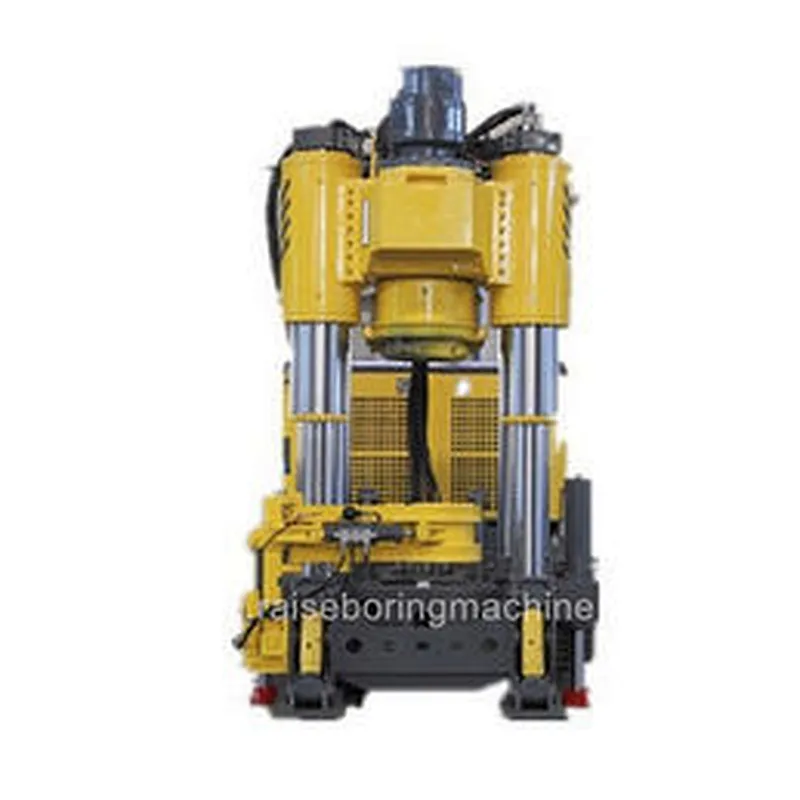

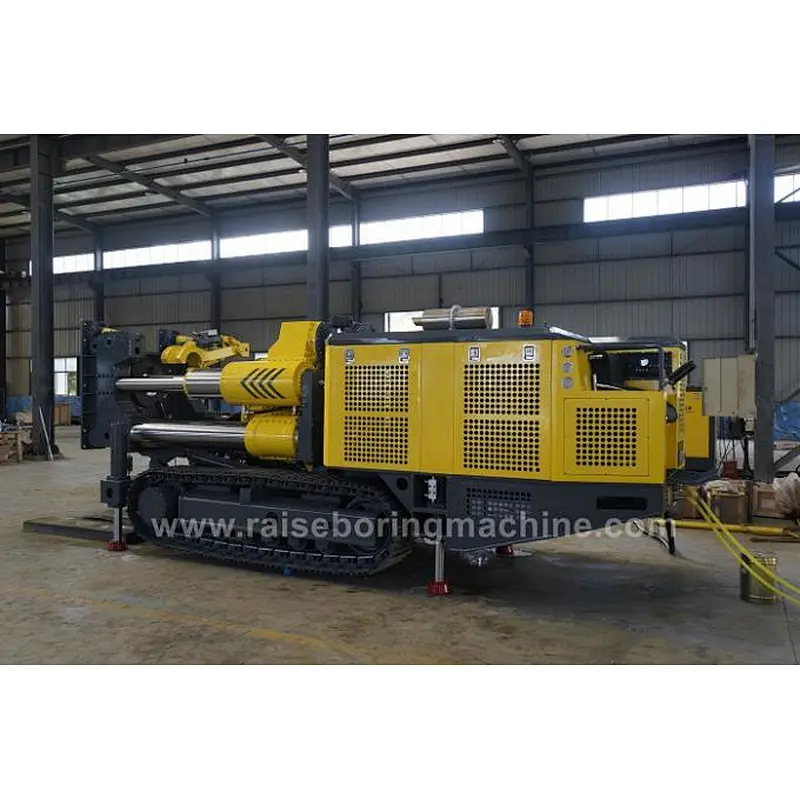

Our crawler raise boring equipments could use for both underground and surface ventilation shaft. Especially for metal mining ventilation application. Our raise borer could conduct 2m, 3m and 5m raise diameter. Crawler model and towed model could be your choice.

All powerful raise boring rigs with a modular design and crawler models for easy transport are ideal when weight or size limitations are a concern. We strive to construct high-quality raise boring machines that are easy to set up, operate and maintain.

Main parameter:

Model/Specs

R120VD

Hole diameter(mm)

Raise diameter

3000

Drilling depth(m)

Raise depth

400

Drill angle (deg)

60~90

DTH Size(mm)

Bit diameter

282

Rod diameter

254

Rod length

1000

Push & Pull (KN)

Downward feed

2890

Upward lift

4920

Rotary

Pilot torque

172

Torque(KN.m)

Raise torque

192

Rotary speed (rpm)

Pilot rotary

0~24

Motor power (kw)

Working(electric)

132

Tralveling(diesel)

/

Chassis model

Crawler

Weight(Ton)

23.9

Application:

• Ventilation

• Ore and/or waste passes
• Production slot raises

• Narrow vein mining
• Shaft piloting • Raise widening
• Manway/escapeways

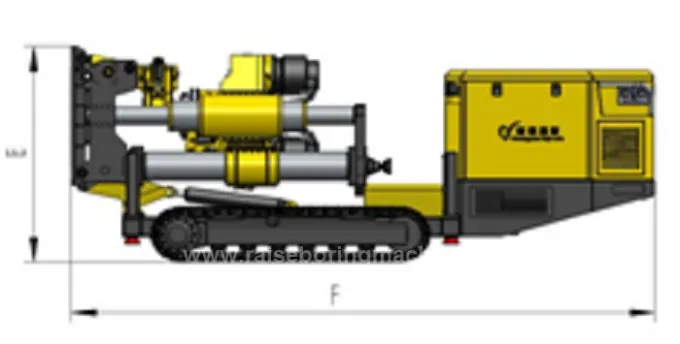

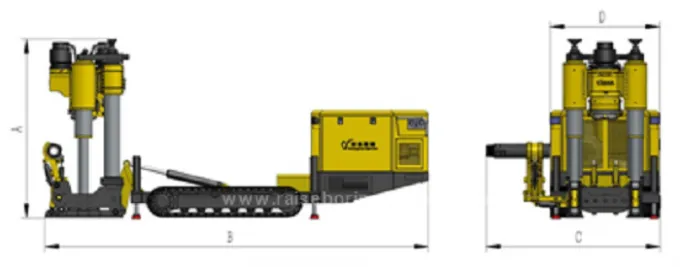

Model/Dimension

A

B

C

D

E

F

Weight(kg)

CY-R120VD

3800

6900

3130

2000

2250

5960

23900

Rcs intelligent control system Make work easy

The CY-RV series RBM installs RCS2.0 intelligent control system with safety protection, automatic operation, fault diagnose, data storage, Internet communications, digital display and so on (see specification of RCS2.0 intelligent control system).

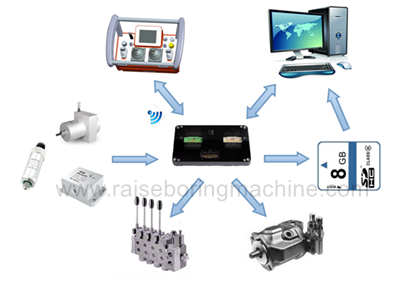

RCS2.0 intelligent control system is made up of hardware and software. The hardware includes PLC, monitors, sensors, communications components, storage medium, console and actuators. The software is made up of kinds of modules, such as central control module, sensor module, operating module, data storage and transmission module, display module, expert database and PC management modules and other components. Various types of data and instruction will be collected for analysis and processing under the guidance of expert database of the PLC, reliable and secure execution of instructions are issued to the execution unit (hydraulic proportional valve or hydraulic variable displacement pump). The system provides PC interface and data storage interface, and professional RCS_PC PC systems. The user can analysis the construction data on line or off line by using the storage data in SD card, monitor real time, and generate the reports of drilling at all times. The system achieves better human-computer interaction and data information services.

Security module has malfunction protection and abnormal conditions protection, malfunction protection can avoid damage to personnel and equipment caused by a variety of errors and dangerous operation of the operator, which can effectively prevent the accident of rod dropping; abnormal protection conditions can avoid adverse effects caused by abnormal lithology and environmental to equipment, and prevent the phenomenon of the rod sticking and burying.
