Model NO.
CY-R120VDL(2)
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
10 set / Month
Country of Origin:
China
Stock Time:
60-90 Days
Quantity:

Detailed Product Description

Commodity:

Crawler Raise Boring Rig / Crawler Raisebore Machine

Raise Diameter:

3m

Raise Depth:

400m

Chasis:

Crawler Mounted

Application:

Ventilation Shaft, Ore Pass, Headrace Shafts For Hydropower Plants

Mine Type:

Metal Mine,cooper,gold,silver,zinc,iron Etc

Return Rate:

1-2 Year

Customer:

Mining Excavation Project Contractor

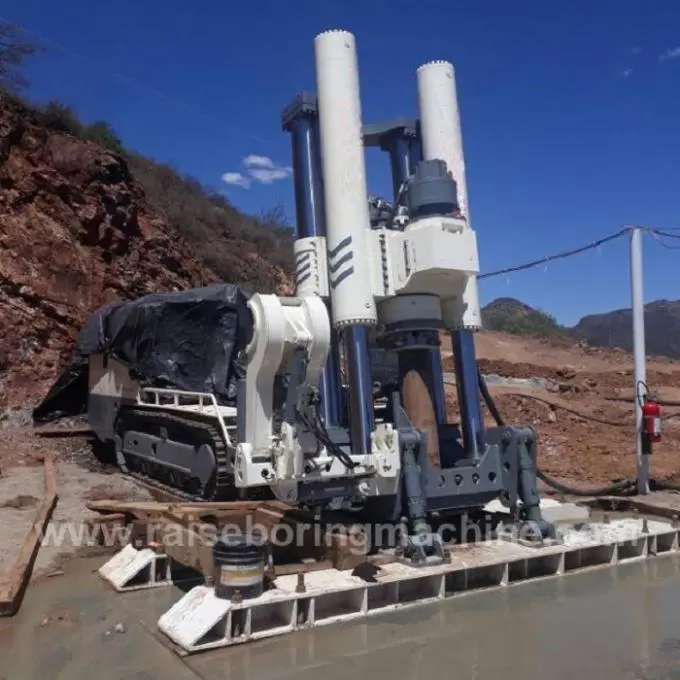

Crawler Raise Boring Rig for Mining Excavation Project with High Return Rate

Our reliable and sturdy raising raise boring machines are used for holes ranging from 1.5 to 5m in diameter. All powerful raise boring rigs with a modular design and crawler models for easy transport are ideal when weight or size limitations are a concern. We strive to construct high-quality machines that are easy to set up, operate and maintain.

Main parameter:

Model/Specs

R120VDL

Hole diameter(mm)

Raise diameter

3000

Drilling depth(m)

Raise depth

Drill angle (deg)

60~90

DTH Size(mm)

Bit diameter

282

Rod diameter

254

Rod length

1524

Push & Pull (KN)

Downward feed

2890

Upward lift

4920

Rotary

Pilot torque

172

Torque(KN.m)

Raise torque

192

Rotary speed (rpm)

Pilot rotary

0~24

Motor power (kw)

Working(electric)

132

Tralveling(diesel)

/

Chassis model

Crawler

Weight(Ton)

24.3

Application:

Our raise boring machines include models for conventional raise boring, box hole boring, and down reaming.

Feature:

Sturdy boring machine:

Our raise boring rigs are medium-sized machines used for both civil engineering and mining applications.




Fast and easy setup:

Our raise boring rigs require a smaller drilling pad and fewer tie-down bolts. Setup is quick and easy to maximize your uptime.

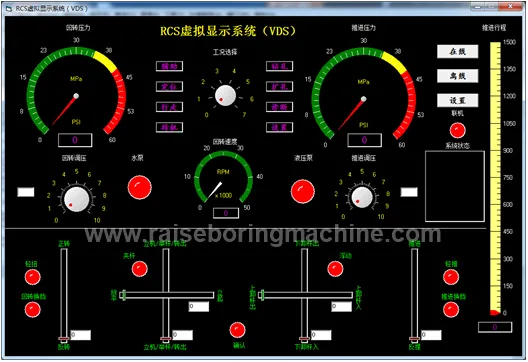

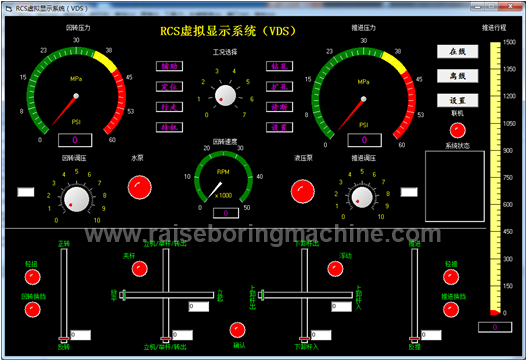

RCS INTELLIGENT CONTROL SYSTEM

Crawler raise boring machine installs RCS intelligent control system with safety protection automatic operation, fault diagnose, data storage, internet communications, digital display so on ( See specification of RCS intelligent control system)

High return rate:

Thanks to our raise boring machine reliabale and sturdy performance, it could help the contractors to earn the invested funds back sonn. Except raise boring rigs we could also supply whole complete accessories alone with technical solutions.
