Model NO.
CY-R120VDL
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
10 set / Month
Country of Origin:
China
Stock Time:
60-90 Days
Quantity:

Detailed Product Description

Commodity:

Crawler Raise Borer Equipment

Raise Diameter:

3m

Raise Depth:

400m

Tread Standard:

PT22 And PI22

Application:

Ventilation Shaft, Ore Pass, Headrace Shafts For Hydropower Plants

Mine Type:

Metal Mine,cooper,gold,silver,zinc,iron Etc

Rod Length:

1m, 1.524m

Control Model:

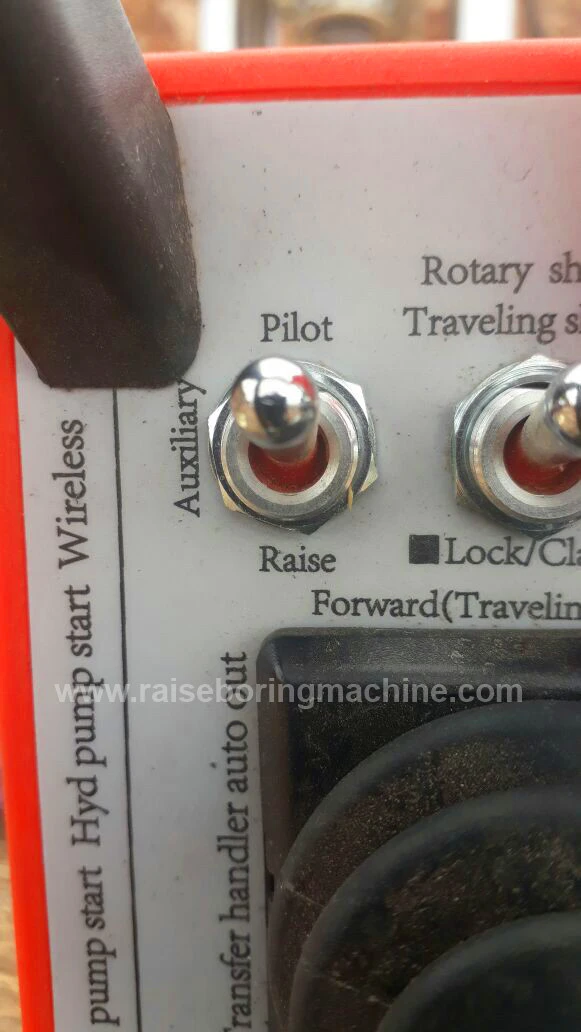

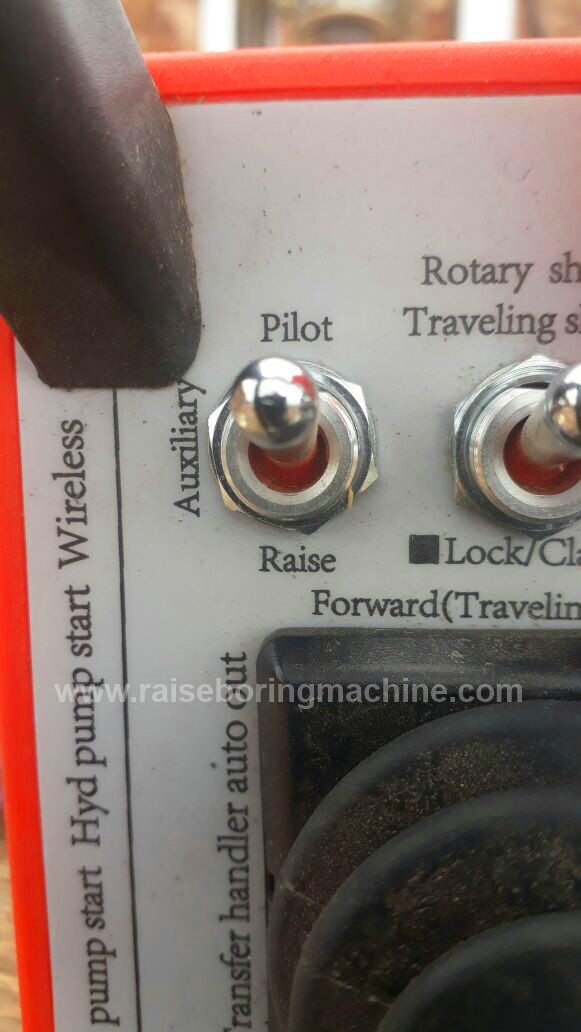

RCS Intelligent Radio Control System

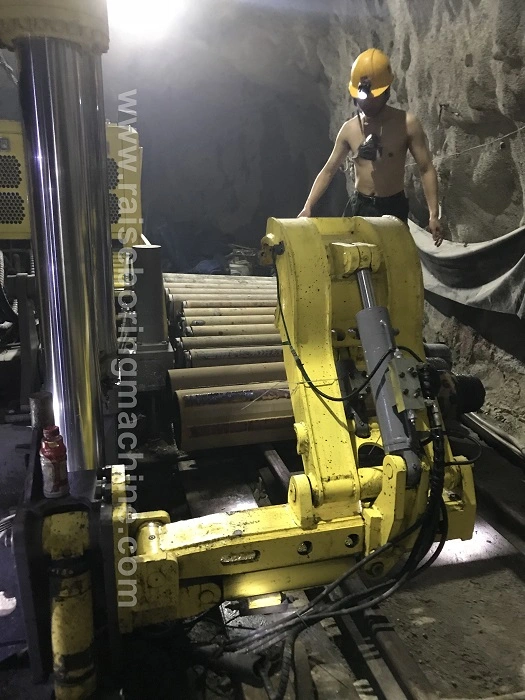

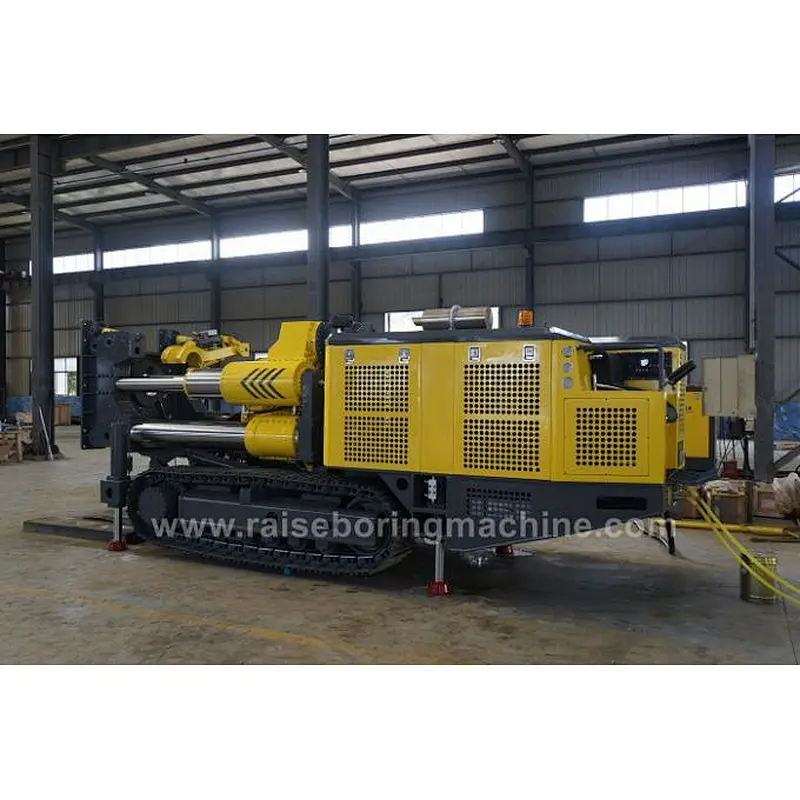

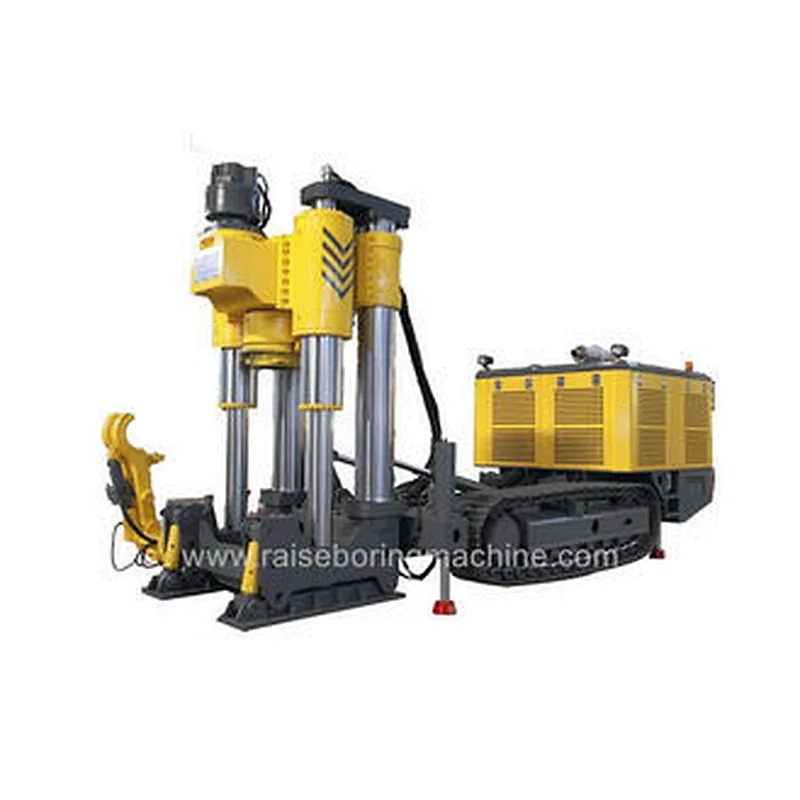

Automatic Rod Loader Raise Borer with Crawler Mounted and RCS Intelligent Control

All series of our raise boring machines are equipped with automatic rod loader which could save labour, time as well as money for mining project contractor.

Crawler mounted model raise boring machines are powered by electric motor and disel engine which could easily transport by it self.

RCS intelligent control system ensure the remote, safe and friendly control modular.

Main parameter:

Model/Specs

R120VDL

Hole diameter(mm)

Raise diameter

3000

Drilling depth(m)

Raise depth

400

Drill angle (deg)

60~90

DTH Size(mm)

Bit diameter

282

Rod diameter

254

Rod length

1524

Push & Pull (KN)

Downward feed

2890

Upward lift

4920

Rotary

Pilot torque

172

Torque(KN.m)

Raise torque

192

Rotary speed (rpm)

Pilot rotary

0~24

Motor power (kw)

Working(electric)

132

Tralveling(diesel)

/

Chassis model

Crawler

Weight(Ton)

24.3

Automatic operation

RCS2.0 intelligent control system has a very useful feature-automatic operation; it can realize automatic position, automatic compression, automatic shift and automatic optimization feature. The power unit can automatic stay at a specific location accurately with no operating, so the function will save your much time. Automatic compression function is to ensure reasonable constant pressure to rock face, the system automatically adjusts the feed pressure to overcome the effects of the change in weight of the rod’s gravity. Automatic shift function can be switched automatically according to road conditions. Automatic optimization function automatically adapts to the load, it will help the system select suitable pressure and flow to give full play to the potential of the device.

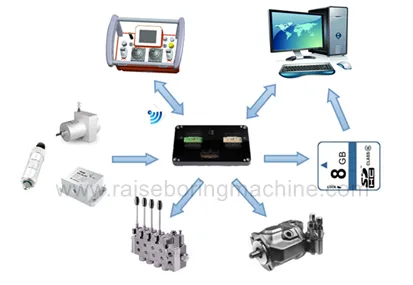

Data Processing

System is equipped with a data recording device, which is built-in 8G large storage, and can record construction data at least three years. User can parse the data packets through RCS_PC System to generate production report, equipment operation report, and the curve of the lithology changing with depth for any period. All of these data can guide the mine production scheduling, equipment maintenance and blasting.

Fault diagnose

The self-diagnose function of the system can help the operator lock and repair faulty circuit quickly. It reduces the maintenance time and improves the construction efficiency greatly.

High return rate:

Thanks to our raise boring machine reliabale and sturdy performance, it could help the contractors to earn the invested funds back sonn. Except raise boring rigs we could also supply whole complete accessories alone with technical solutions.
