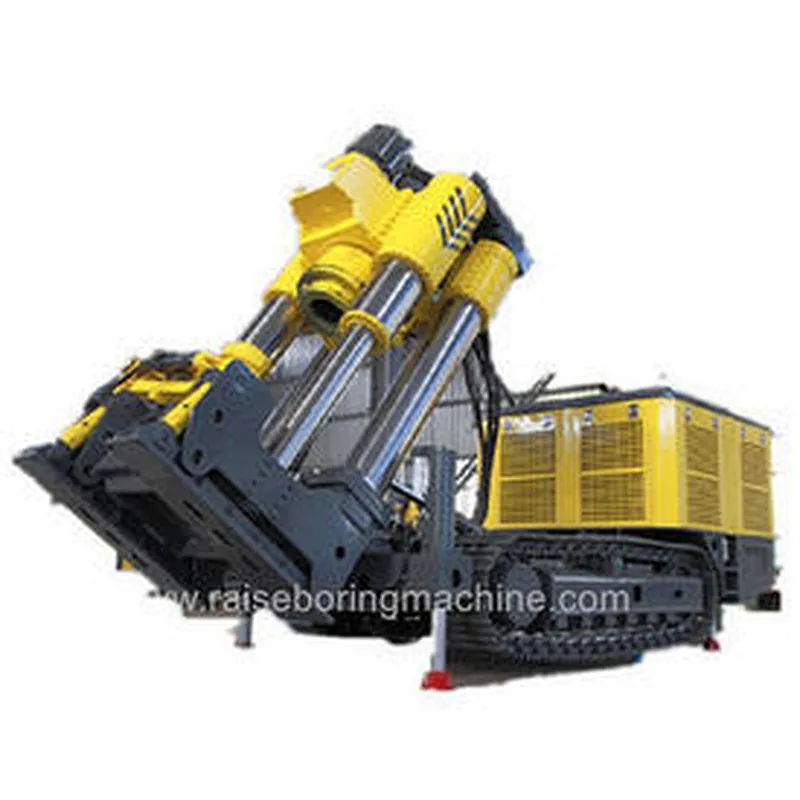

Raise Depth 400m Crawler Raise Borer Diesel - Electric Dual Power Hydraulic System

Raise Depth 400m Crawler Raise Borer Diesel - Electric Dual Power Hydraulic System

Model NO.: CY-R120VDL(1)
Delivery:: FOB
Minimum order quantity:: 1 set
Supply Ability:: 10 set / Month
Country of Origin:: China
Stock Time:: 60-90 Days

Quantity:

Product Description
Application Description

Detailed Product Description

Commodity:	Crawler Raise Boring Rig / Crawler Raisebore Machine	Raise Diameter:	3m
Raise Depth:	400m	Rod Size:	10'' , 11 1/4''
Application:	Ventilation Shaft, Ore Pass, Headrace Shafts For Hydropower Plants	Mine Type:	Metal Mine,cooper,gold,silver,zinc,iron Etc
Rod Length:	1m, 1.524m	Rod Material:	4330V

Crawler Raise Boring Machine with DI22 10''(254mm) and 11 1/4'' rod (286mm) 1.524m length

Except our own patend rod, our crawler raise borer could also use DI 22 standard rods. The RBM rods size could be 10''(254mm) and 11 1/4'' rod (286mm) and the length could be 1m and1.524 meters as well.

Our reliable and sturdy raising raise boring machines are used for holes ranging from 1.5 to 5m in diameter. All powerful raise boring rigs with a modular design and crawler models for easy transport are ideal when weight or size limitations are a concern. We strive to construct high-quality machines that are easy to set up, operate and maintain.

Main parameter:

Model/Specs		R120VDL
Hole diameter(mm)	Raise diameter	3000
Drilling depth(m)	Raise depth	400
Drill angle (deg)		60～90
DTH Size(mm)	Bit diameter	282
	Rod diameter	254
	Rod length	1524
Push & Pull (KN)	Downward feed	2890
Push & Pull (KN)	Upward lift	4920
Rotary	Pilot torque	172
Torque(KN.m)	Raise torque	192
Rotary speed (rpm)	Pilot rotary	0～24
Motor power (kw)	Working(electric)	132
Motor power (kw)	Tralveling(diesel)	/
Chassis model		Crawler
Weight(Ton)		24.3

Application:

Our raise boring machines include models for conventional raise boring, box hole boring, and down reaming.

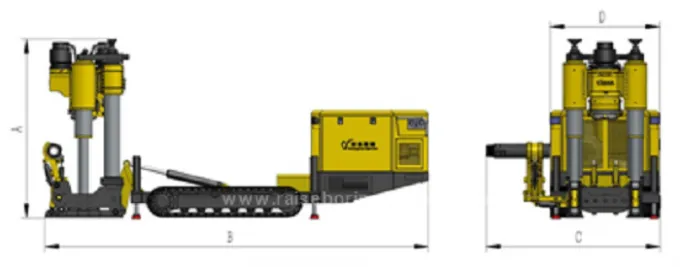

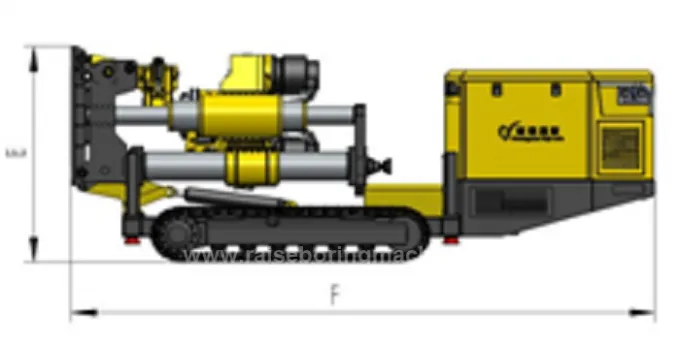

Model/Dimension	A	B	C	D	E	F	Weight(kg)
CY-R120VDL	3630	6900	3120	1970	2160	6060	24800

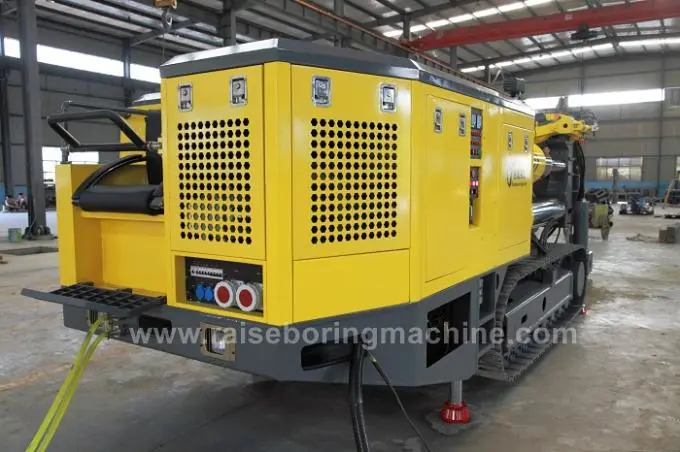

Diesel-electric dual power hydraulic system

The independent diesel driven hydraulic system with load-sensing control, constant power control, proportional solenoid control is newly added in the base of the CY-R series RBM hydraulic system. All functions of working site are powered by a motor. Diesel is responsible for traveling. So the major advantages of CY-RV series RBM hydraulic system are same with CY-R series RBM.

Rcs intelligent control system Make work easy

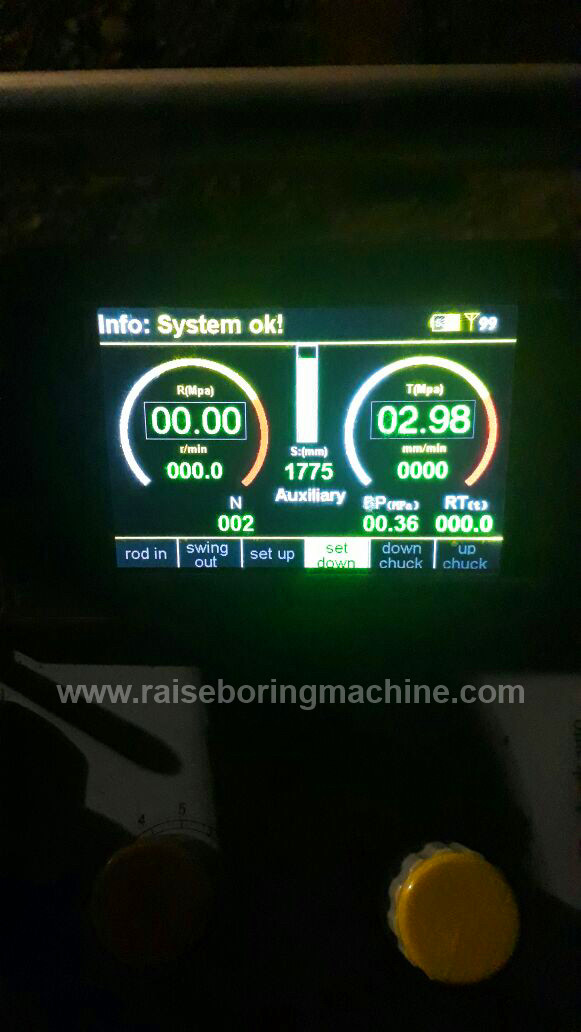

The CY-RV series RBM installs RCS2.0 intelligent control system with safety protection, automatic operation, fault diagnose, data storage, Internet communications, digital display and so on (see specification of RCS2.0 intelligent control system).

High return rate:

Thanks to our raise boring machine reliabale and sturdy performance, it could help the contractors to earn the invested funds back sonn. Except raise boring rigs we could also supply whole complete accessories alone with technical solutions.
