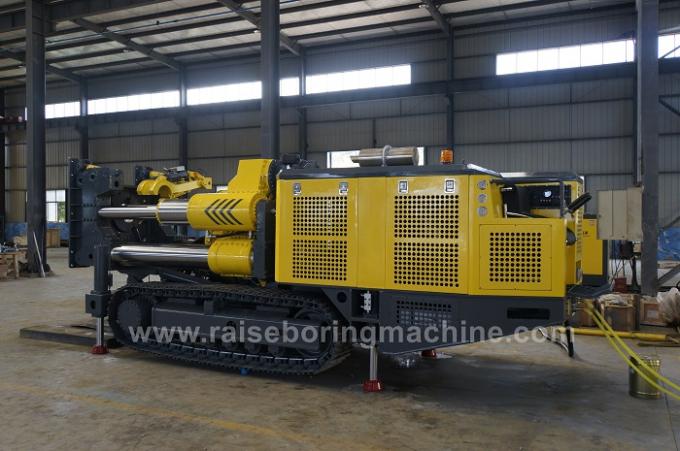

Crawler Raise Boring Rig

Raise Diameter:

2.5m

Raise Depth:

400m

Pilot Diameter:

240mm

Application:

Ventilation Shaft, Connection Shafts,conveyor Shafts

Mine Type:

Metal Mine,cooper,gold,silver,zinc,iron Etc

Control System:

RCS Intelligent Control System

Movement:

Easy To Transport With Crawler

Compact Crawler Mounted and Easy Setup Raise Boring Machine with 2-3.5m Diameter

The Crawler Raise Boring Rig (RBR) developed by Chungyuan is designed for the construction of shafts in rock down to 200-1000 meters in depth with diameter 2-5m. Thanks to its compact crawler design, it offers high flexibility and maneuverability even under space constraints and is therefore suitable for various applications in the mining industry and civil construction.
Our raise boring rigs require a smaller drilling pad and fewer tie-down bolts. Setup is quick and easy to maximize your uptime.

Application:
Connection shafts for mining or penstocks for pump storage power plants can be constructed quickly and safely. Ventilation purpose, transport of muck or ores, conveyor shafts, supply shafts for energy, water and air, or headrace shafts for hydropower plants

Main parameter:

Model/Specs

R80V

Hole diameter(mm)

Downward

1.5m,2m,2.5m

Anticlockwise raise

Upward clockwise raise

/

Downward clockwise raise

/

Drilling depth(m)

Downward

400

anticlockwise raise

Upward clockwise

/

raise

Downward clockwise raise

/

Drill angle (deg)

Elevation and

60~90

depression

Left right rotary

/

Pilot Size(mm)

Bit diameter

240

Rod diameter

254,282

Rod length

1000

Push & Pull (KN)

Downward feed

1160

Upward lift

2770

Rotary

Pilot torque

70

torque(KN.m)

Raise torque

95



Breakout torque

Rotary

Pilot rotary

speed (rpm)

Raise rotary

0~30

Working

Length

4050

Dimension (mm)

Width

1610

(travelling)

Height

1850

Motor power (kw)

Working(electric)

90

Tralveling(diesel)

/

Chassis model

Crawler

Weight(Ton)

12

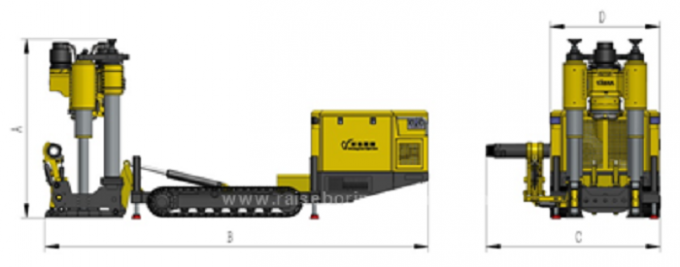

Dimension:

A

B

C

D

E

F

Weight(kg)

CY-R80V

4000

6900

3000

1970

2160

5860

20500

CY-R120DV

3130

6900

3120

1970

2160

5860

24800

CY-R120V

3220

6900

3130

1970

2170

5860

24500

 Two drilling modes and three operation modes:

The control system supports two pilot drilling modes(high accuracy drilling mode and fast speed drilling mode) and three operation modes(manual operation, wireless operation and wired operation).

The user can select drilling mode according to accuracy requirement and geological conditions and select operation mode according to operating position and the actual situation.

Diesel-electric dual power hydraulic system:
The independent diesel driven hydraulic system with load-sensing control, constant power control, proportional solenoid control is newly added in the base of the CY-R series raise boring machine hydraulic system. All functions of working site are powered by a motor. Diesel is responsible for traveling. So the major advantages of CY-RV series raise boring machine hydraulic system are same with CY-R series raise boring machine.
