Model NO.:
CY-R120VD
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
10 set / Month
Country of Origin:
China
Stock Time:
60-90 Days
Quantity:

Detailed Product Description

Commodity:

Crawler Raise Boring Rig

Raise Diameter:

3.5m

Raise Depth:

400m

Pilot Diameter:

280mm

Application:

Ventilation Shaft

Mine Type:

Metal Mine,cooper,gold,silver,zinc,iron Etc

Control System:

RCS Intelligent Control System

Movement:

Easy To Transport With Crawler

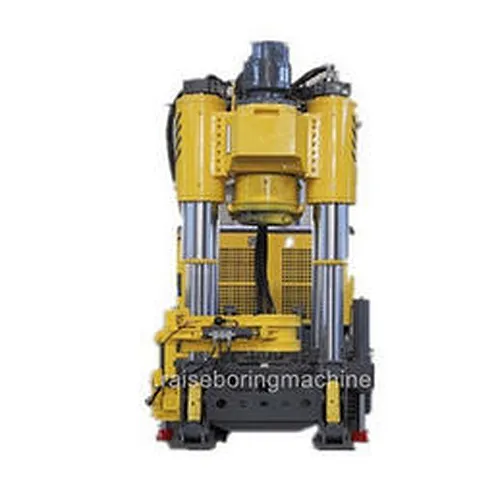

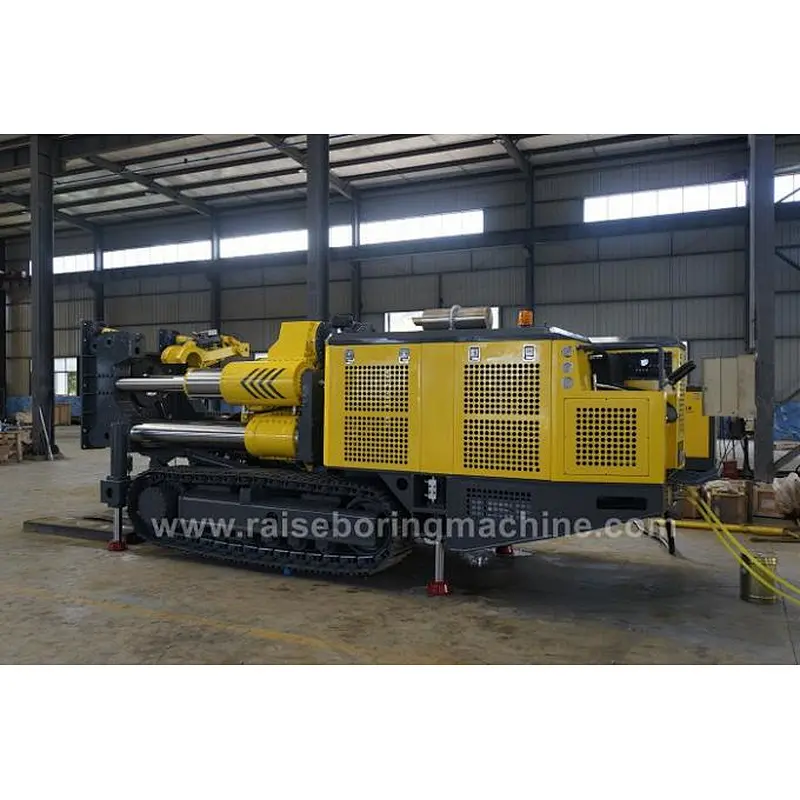

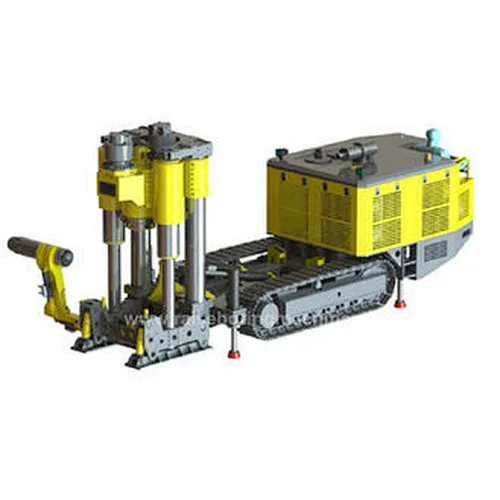

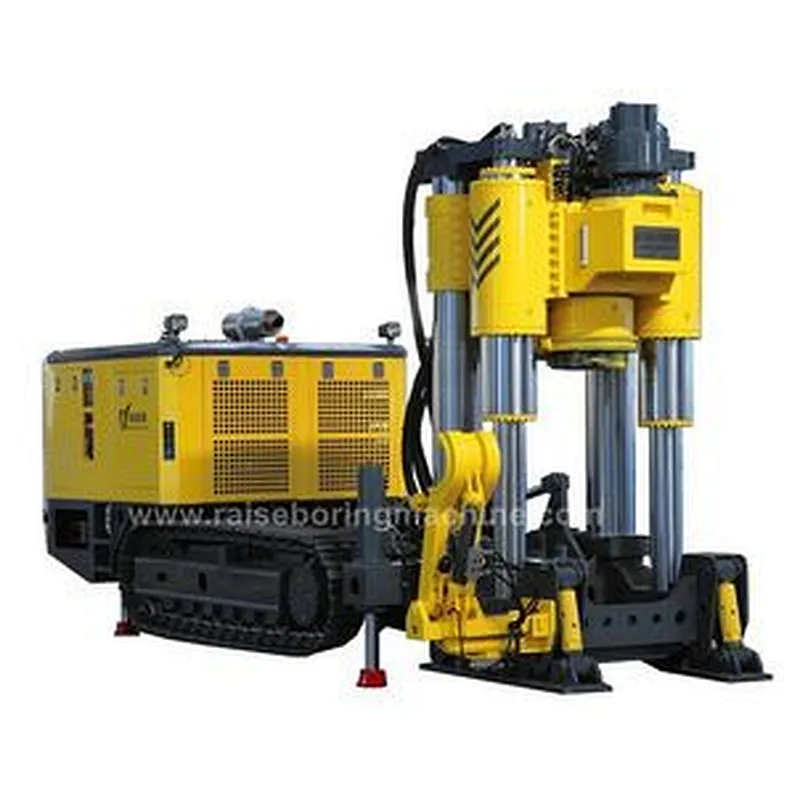

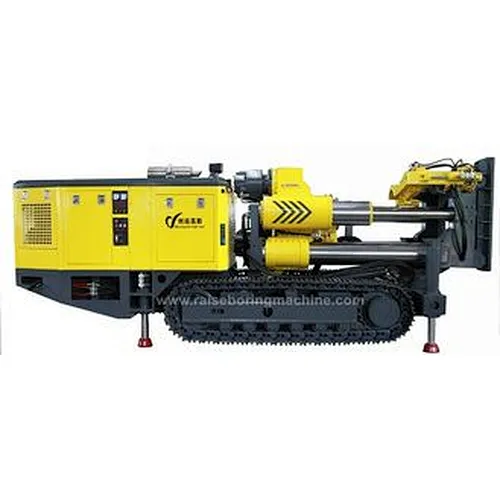

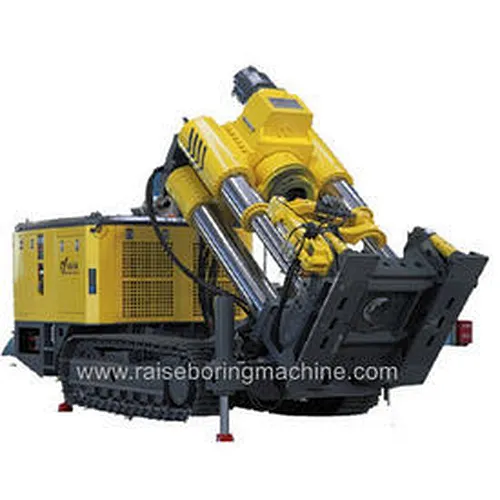

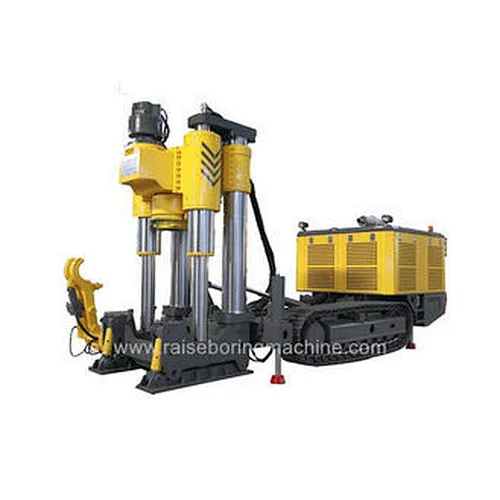

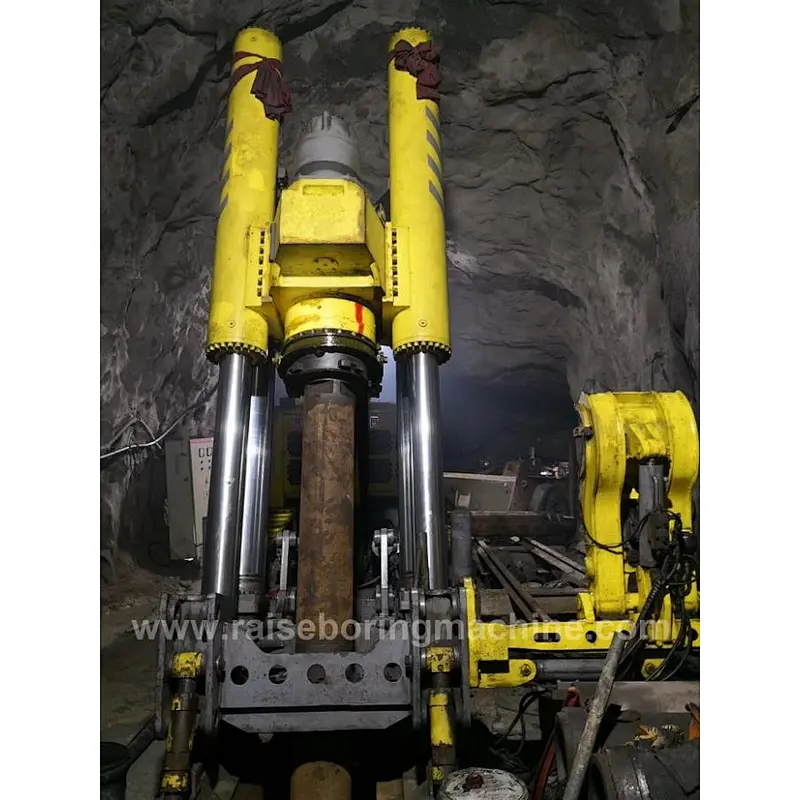

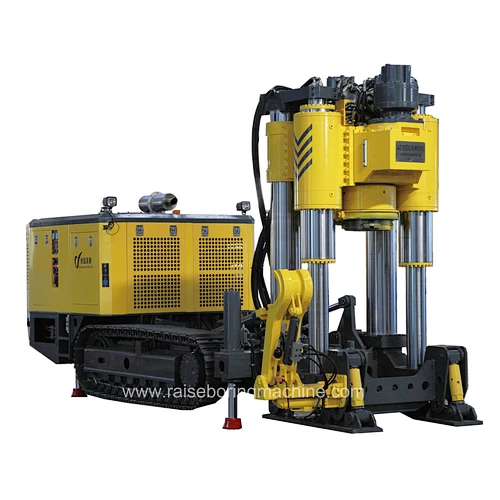

Crawler Mounted and Integrated 3.5m Diameter Raise Boring Machine with RCS Control

The traditional rail wheel towed RBM is difficult for site transfer in the modern trackless underground mine. RBM must be disassembled, transported and reassembled. This process, which is both time-consuming and inefficient. It has seriously restricted the traditional RBM development in the trackless underground mine.

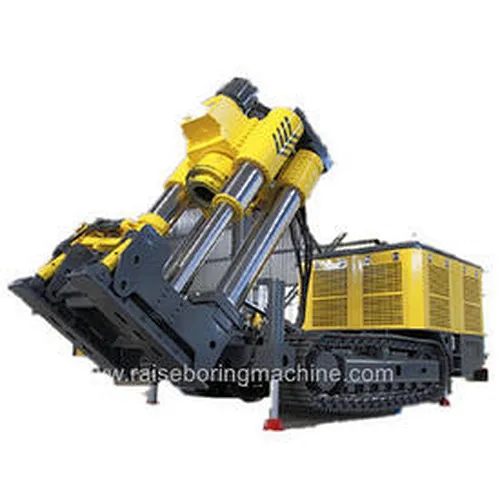

With the help of our proven technology we have successfully developed CY-RV series crawler self-propelled RBM by adopting the mainframe module and the hydraulic system of the traditional RBM. The CY-RV series RBM utilizes innovative diesel-electric dual power module and crawler chassis. Various technical indicators of CY-RV series RBM have reached the international advanced level of similar products, and filled the domestic blank.

Main parameter:

Model/Specs

R120VD

Hole diameter(mm)

Downward

1500~3500

Anticlockwise raise

Upward clockwise raise

/

Downward clockwise raise

/

Drilling depth(m)

Downward

600

anticlockwise raise

Upward clockwise

/

raise

Downward clockwise raise

/

Drill angle (deg)

Elevation and

60~90

depression

Left right rotary

/

DTH Size(mm)

Bit diameter

282

Rod diameter

254

Rod length

1000

Push & Pull (KN)

Downward feed

2900

Upward lift

4300

Rotary

Pilot torque

172

torque(KN.m)

Raise torque

172



Breakout torque

197

Rotary

Pilot rotary

0~24

speed (rpm)

Raise rotary

0~12

Working

Length

4100

dimension (mm)

Width

2900



Height

3800

Travelling

Length

2980

dimension (mm)

Width

1510



Height

1800

Motor power (kw)

Working(electric)

132

Tralveling(diesel)

/

Chassis model

Crawler

Weight(Ton)

23.9

Applications:

Raise Boring Rig creates shafts for ventilation purpose, transport of muck or ores, conveyor shafts, supply shafts for energy, water and air, or headrace shafts for hydropower plants - safely, precisely and cost-effectively.

Feature:

HIGH PRESSURE LOAD SENSING HYDRAULIC SYSTEM

Crawler raise boring machine hydraulic system with 40 Mpa high pressure has a number of advanced technologies such as constant power control, load - sensing control, multiple filtering proportional solenoid control and so on. In addition, the system stays ahead in mine field. The advanced advantages of higher intelligent degree, bigger power density, stronger anti–dirty ability and higher reliability can ensure that RBM effectively excavate for hard rock.

TWO DRILUNG MODES AND THREE OPERATION MODES

The control system supports two drilling modes (high accuracy drilling mode an speed drilling mode) and three operation modes (manual operation, wireless operation and wired operation). The user can select drilling mode according to accuracy requirement and geological conditions and select operation mode according to operating position and the actual situation.

FULL- MECHANIZED CONNECTING & BREAK NG OUT DRILL PIPES SYSTEM

By means of the automatic positioning technology and two hydraulic wrenches inserted dynamically, the operation that operators connect and break out drill pipes can be accomplished without being directed. The system greatly reduces working strength and saves auxiliary working time.

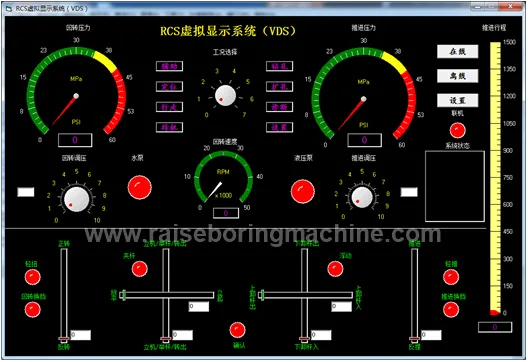

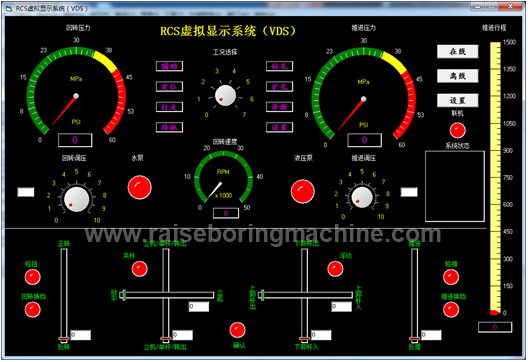

RCS INTELLIGENT CONTROL SYSTEM

Crawler raise boring machine installs RCS intelligent control system with safety protection automatic operation, fault diagnose, data storage, internet communications, digital display so on ( See specification of RCS intelligent control system)
