Model NO.:
CY-UMD
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
20 set / Month
Country of Origin:
China
Stock Time:
60 Days
Quantity:

Detailed Product Description

Features:

Can Be Disassembled Into 3 Parts

Operation Modes:

Manual, Wires, Wireless

Application:

Large Diameter Long - Hole Mining

CY-UMD4 Diameter:

76-127 Mm

CY-UMD4 Depth:

100 M

CY-UMD6 Diameter:

105-165 Mm

CY-UMD6 Depth:

100 M

Category:

Underground DTH

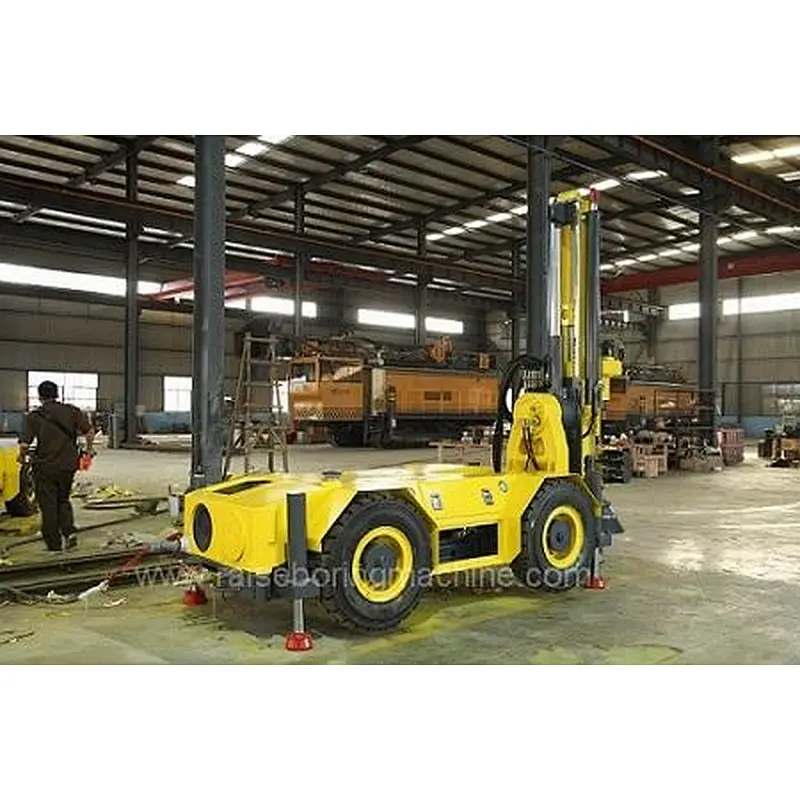

76 - 165 mm Diameter Underground Down the Hole Drill Rig with RCS Intelligent Control System

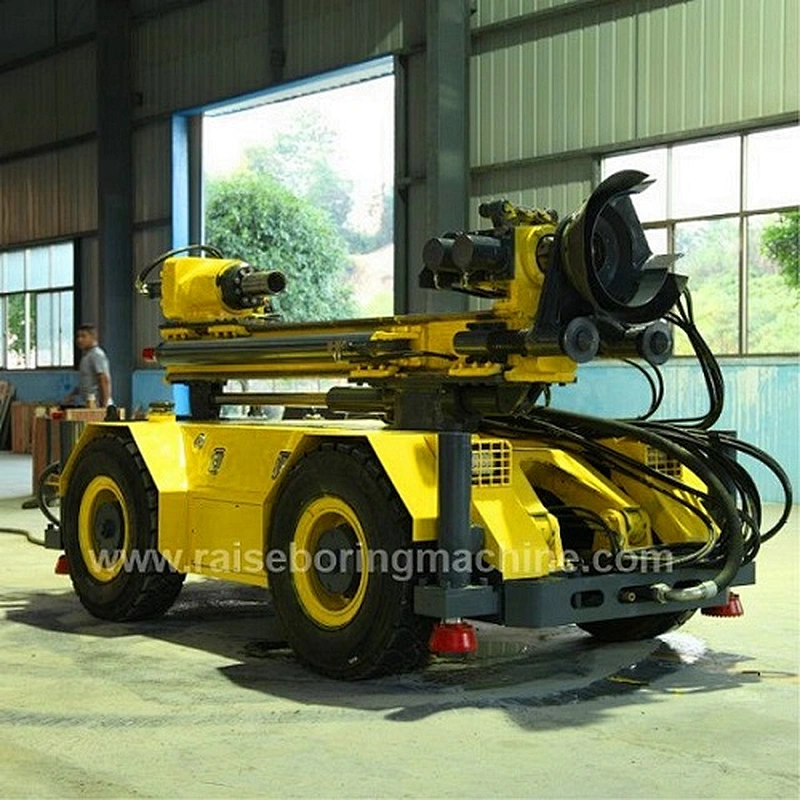

INTRODUCTION

CY-UMD series underground down-the-hole drilling rig is a new generation of digital drilling rigs developed to meet the new process requirements of modern mines, combined with the experience of traditional rigs and advanced hydraulic and program control technology. It is compact, safe, efficient, reliable and durable. And the operation is comfortable and the maintenance is convenient. It is the first choice for the large-diameter deep hole mining method of underground mines in China.

FUNCTION CHARACTERISTICS

1, Compact Structure

It can work safely in the 2500mm high short mining; it can walk safely in the 1700mm wide and 1800mm high roadway. It can also be quickly disassembled into three units, and the largest unit size is 3100×1300×620mm3, which is convenient for entering the mining well.

2, Load-Sensing Hydraulic System

It adopts load-sensitive, multi-filter and full-scale electromagnetic control hydraulic system, which is energy-saving and efficient, with high intelligence and strong anti-pollution ability, and the system is more stable and reliable.

3, Intelligent Control System

The CY-UMD series underground down-the-hole drilling rig is equipped with the RCS2.0 intelligent control system, which has functions such as safety protection, automatic operation, fault diagnosis, data storage, interconnection communication and digital display.

4, Kinematic-Pair with New Material and Well-Known Key Components

The key parts such as electrical parts, hydraulic parts and moving parts adopt international famous brands, and the sliding pair adopts replaceable wear strips. The rotating shafts of each pin adopt self-lubricating graphite materials, which greatly prolongs the service life of the drilling rig.

OPTIONAL CONFIGURATION FEATURES
1. Dual-powered diesel power unit: It can travel long distances and is convenient for transition.
2, Automatic retractable cable reel: Efficient, safe and convenient operation.
3, Automatic leveling module: Automatic and fast to achieve the level of the whole machine.
4. Rock drilling automatic recorder: Automatically record the main operating parameters in the rock drilling operation. A histogram of rock changes with depth in the hole is automatically drawn.
5. Data communication module: Upload the main working parameters and production report of the drilling rig to the mine production management system through the U disk or mine communication system.
6, Wireless control module: can choose the appropriate safe operating position according to the mining environment and the field of view.

PERFORMANCE PARAMETERS

Description

Unit

CY-UMD4

CY-UMD6

Operation

Air Pressure

MPa

0.6-2.4

0.6-2.4

Max. Diameter

mm

76-127

105-165

Max. Depth

m

100

100

Drill Angle from Ground

°

-10-99

-10-99

Feed

Feed Force

KN

0-80

0-80

Lifting Force

KN

0-80

0-80

Feed Speed

m/min

0-12

0-12

Feed Stroke

mm

1660/1160

1660/1160

Rotation

Clockwise Torque

KN.m

0-3300

0-3900

Anticlockwise Torque

KN.m

0-4900

0-5100

Rotation Speed

r/min

0-43

0-39

Travel

Tractive Force

KN

25/16

37/22

Travelling Speed

Km/h

2.5/1.6

4.0/2.5

Gradeability

°

25

25

Height from the Ground

mm

250

250

Power

Voltage

V

AC380

AC380

Motor Power

KW

18.5

22

Motor Rotation Speed

r/min

1470

1470

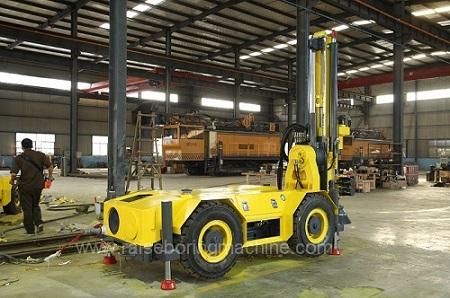

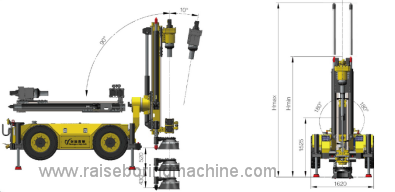

DIMENSION

CY-UMD4
(Standard)

CY-UMD4
(Short)

CY-UMD6
(Standard)

CY-UMD6
(Short)

Hmax (mm)

3060

2560

3060

2560

Hmin (mm)

4480

3580

4480

3580

Weight (kg)

4480

4600

5000

4800
