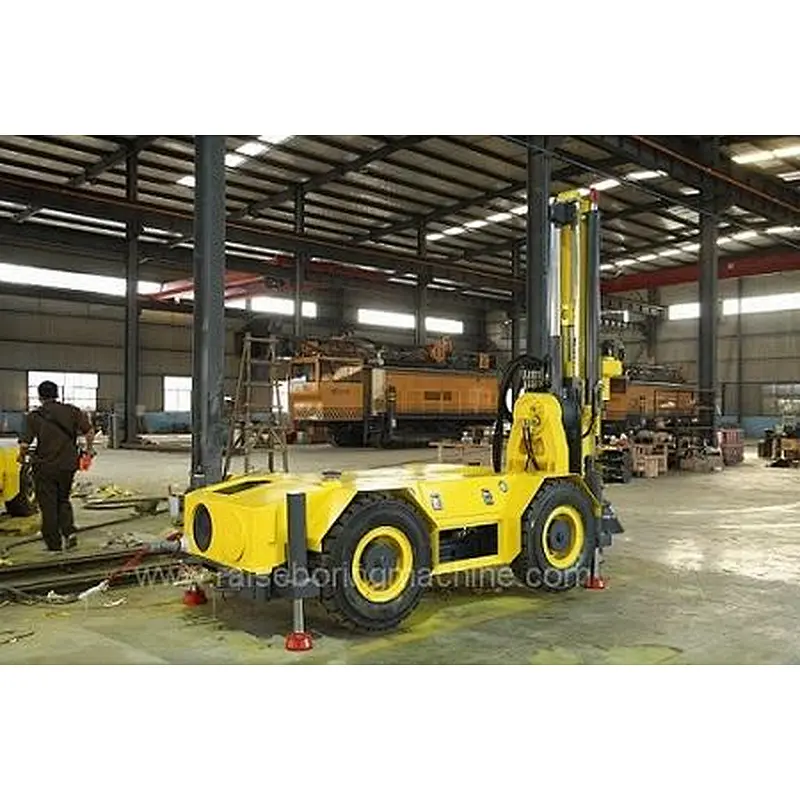

Compact Underground Down The Hole Drill For Large Dia Long Hole Mining
Compact Underground Down The Hole Drill For Large Dia Long Hole Mining
Compact Underground Down The Hole Drill For Large Dia Long Hole Mining
Compact Underground Down The Hole Drill For Large Dia Long Hole Mining
Compact Underground Down The Hole Drill For Large Dia Long Hole Mining
Compact Underground Down The Hole Drill For Large Dia Long Hole Mining
Compact Underground Down The Hole Drill For Large Dia Long Hole Mining

Compact Underground Down The Hole Drill For Large Dia Long Hole Mining

Model NO.
CY-UMD(1)
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
20 set / Month
Country of Origin:
China
Stock Time:
60 Days
Quantity:

Detailed Product Description

Application:

Underground DTH Drill

Operation Modes:

Manual, Wire-Control, Wireless

Diameter:

76-165mm

Depth:

100m

Characteristics:

Compact Structure, Safety, Efficiency, High Reliability

Hydraulic System:

Load Sensing Control, Multible Foltering

Feed Force:

0 - 80 KN

Lifting Force:

0 -80 KN

100m Depth Underground Down The Hole Drill with for Large Diameter Long -Hole Mining

INTRODUCTION

The CY-UMD series underground down-the-hole drilling rig is developed on the basis of the experience of rigs for many years. It is developed according to the process requirements of mines in China, using advanced electro-hydraulic control technology, program control technology and computer design technology. It is compact, reliable, durable, efficient, safe, low-cost, and harmonious. It is an essential perforating equipment for underground mines, especially digital mines in China.

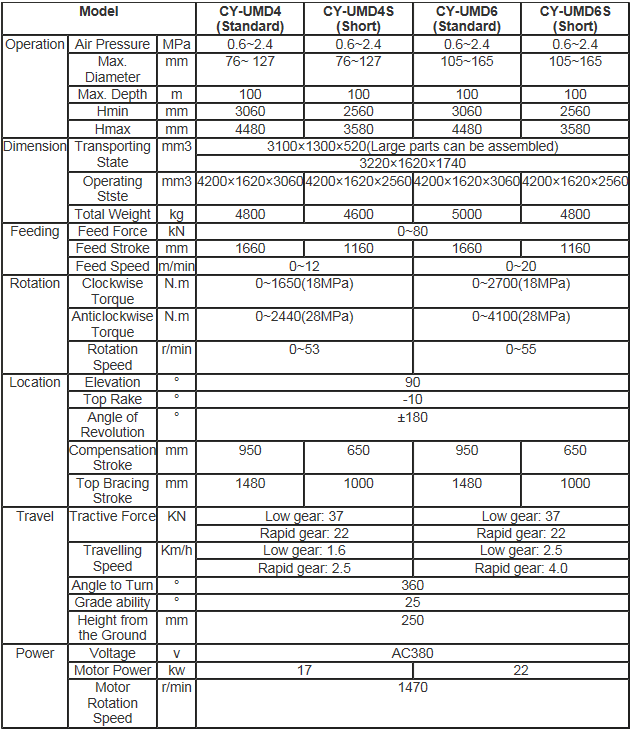

SPECIFICATIONS

CHARACTERISTICS

1. Optimized Design and Compact Structure
Compared with similar products of other manufacturers, the size of our underground DTH drill rig is greatly reduced, whether it is in the walking state or in the working state, the whole rig can be down to the mining well. And it is convenient for transition, and can be safely operated in a short mining field of 2600 mm.
2. Load Sensitive High Protection Hydraulic System
We use load-sensitive hydraulic pumps and load-sensitive electromagnetic proportional valves from well-known manufacturers, so that the control is independent of the load, the ratio is good, and there is no overflow and no heat. In addition, our underground DTH drilling rig uses multi-stage filtration of oil absorption, pipeline, oil return and oil drain. The system is not easy to pollute, making the hydraulic components work more reliably.
3. Program-Controlled Operating System Based on CANBUS technology
We use an advanced program-controlled operating system to ensure that the rig is efficient and reliable, and automatically adapts to different working conditions. In addition, our underground DTH drilling rigs have intelligent control functions such as stuck drill warning, opening decompression, docking rod floating, and drill rod steering.
4. Bi-Directional Damping Rotation Head with Patented Technology
The flexible connection between the rotation head and the drill pipe can effectively isolate the impact of the hammer and the rotational vibration to the rig, thereby improving the reliability of the rig.
5.New Type Dust Collector of Our Patented Technology
The low flow resistance design, the two-stage sealing structure, the elastic structure of the derric and other new structures prevent the bits of rock from being sprayed to the drilling machine, which greatly improves the life of each moving part.
6. Wear-Free Propulsion Rail
The propulsion rail can be replaced with wear-resistant strips, the sliding pair is made of organic wear-resistant material.
7. Cartridge Wheels with Independent Driven
The wheels are modular in design and the four wheel assemblies are quick to remove for easy access to the tank.
8. Three Operation Modes
The operator can select manual, wire-control and wireless modes of operation as needed.

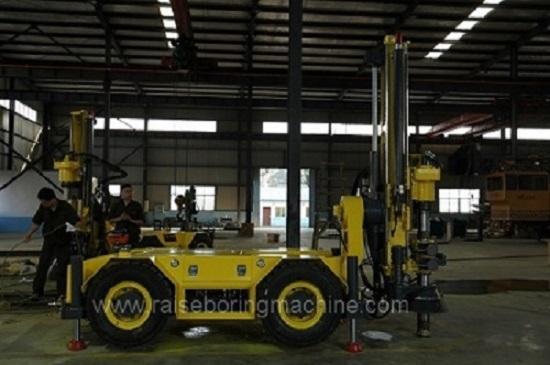

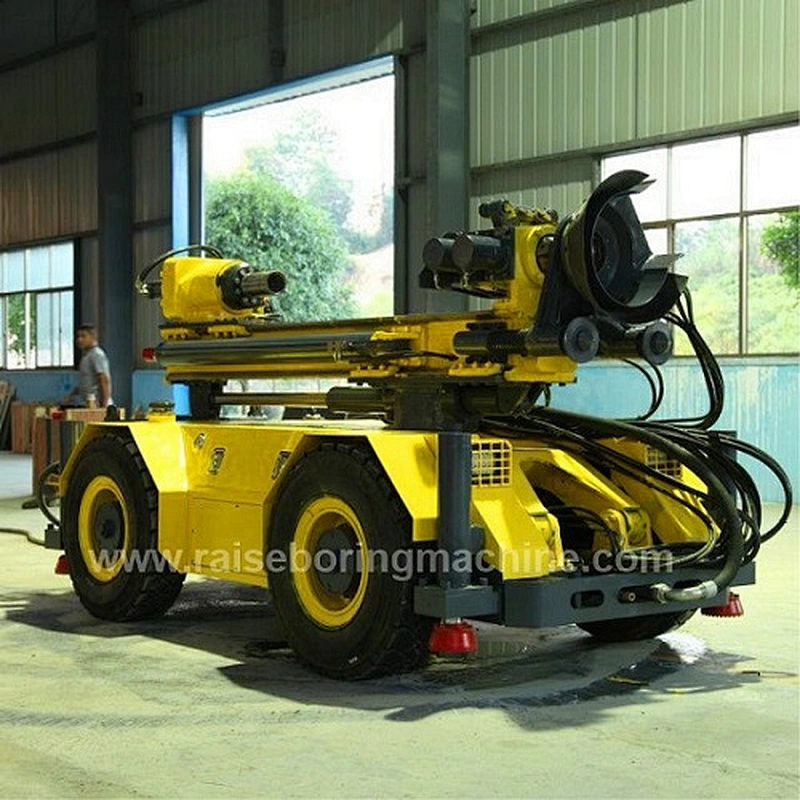

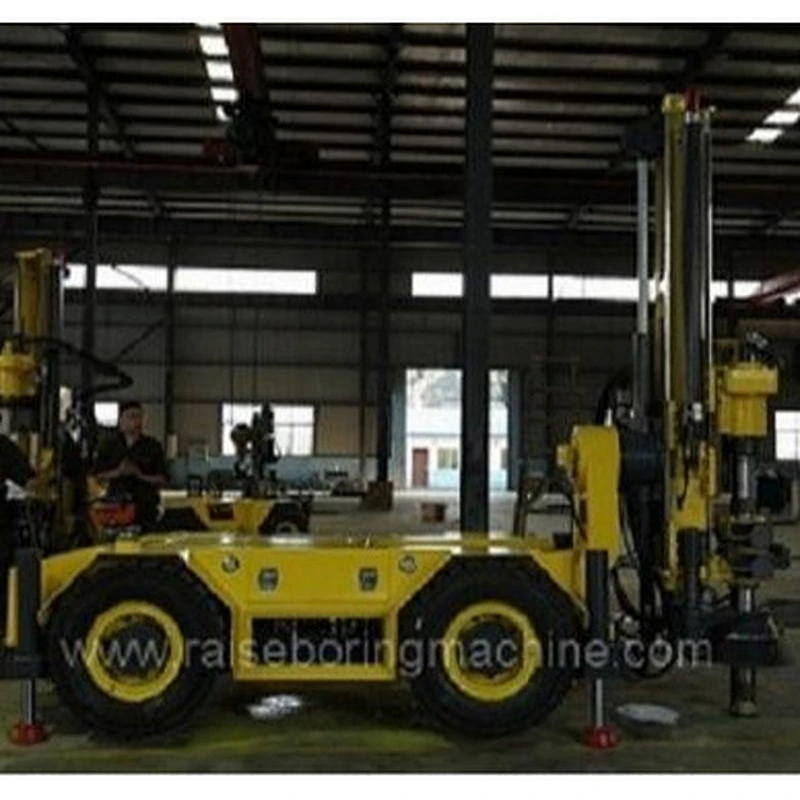

PICTURES
