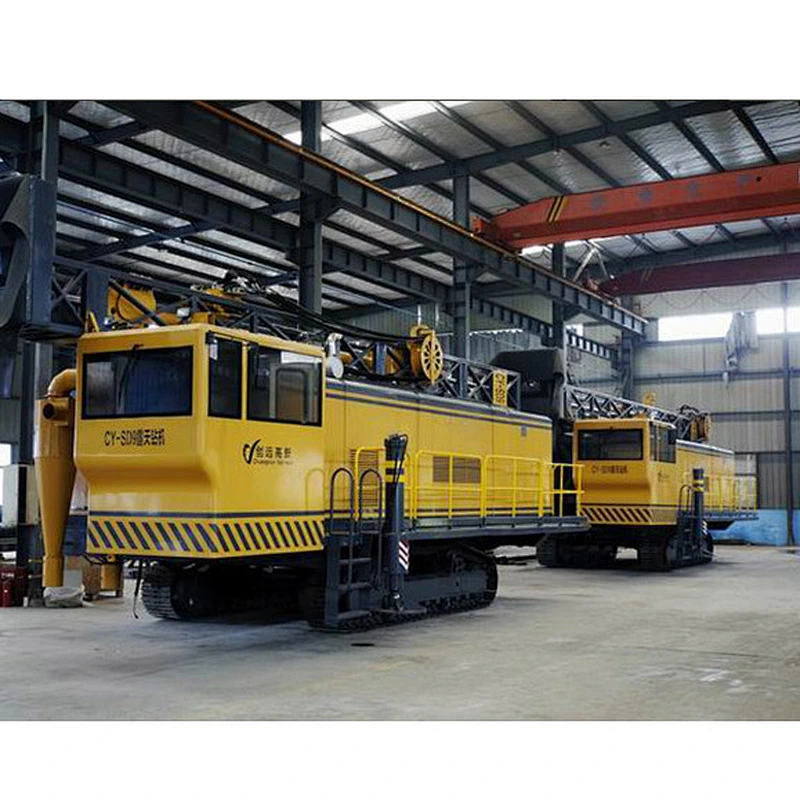

Strong Rotation / Propulsion Down The Hole Drill Rig 280KW Motor Power
Strong Rotation / Propulsion Down The Hole Drill Rig 280KW Motor Power
Strong Rotation / Propulsion Down The Hole Drill Rig 280KW Motor Power

Strong Rotation / Propulsion Down The Hole Drill Rig 280KW Motor Power

Model NO.
CY-SD9(2)
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
20 set / Month
Country of Origin:
China
Stock Time:
60 Days
Quantity:

Detailed Product Description

Diameter:

203-254mm

Depth:

18m

Motor Power:

280KW

Power System:

Diesel-electric

Application:

Surface Mining

Control Syatem:

RCS

Disel Engine Power:

114KW

Control System:

RCS

DTH Down The Hole Drill 18m Depth 250KW with Strong Rotation and Propulsion

Introduction:

CY-SD series surface DTH Down The Hole Drill  that used the advanced hydraulic and program-controlled technology, modular design and manufacture, are highly efficient and reliable, energy-saving, environmental, safety and comfortable. They are a kind of ideal equipment of the modern digital mine.

Main parameters:

CY-SD7

CY-SD9

Diameter

138-178 mm

203-254 mm

Depth

18 m

18 m

Drill Angle From Horizontal

0-30°

0-30°

Weight

30000 KG

35000 KG

Tractive Force

312 KN

312 KN

Depth

0-0.8/1.6 Km/h

0-0.8/1.6 Km/h

Grade ability

20°

20°

Weight

400 mm

400 mm

Voltage

6 or 10 KV

6 or 10 KV

Total Capacity

500 KVA

0-0.8/1.6 KVA

Motor Power

45 (AC380V) KW

45 (AC380V) KW

Diesel Engine Power

97 KW

114 KW

Motor Power

250 KW

280 KW

Pressure

2.07 Mpa

2.07 Mpa

Displacement

28.3 m3/min

32.6 m3/min

Feed Force

0-74 KN

0-74 KN

Lifting Force

0-113 KN

0-113 KN

Feed Velocity

0-20 m/min

0-20 m/min

Feed Distance

9 m

9 m

Clockwise torque

3.6 KN.m

3.6 KN.m

Anticlockwise torque

6 KN.m

6 KN.m

Rotation Velocity

0-55 r/min

0-55 r/min




Main features:

Dual power system driven by diesel-electric:

Diesel power can be used to walk long distance, the electric power can be used to drill in mining field, it can both develop mobility of diesel power and maintain the low cost nature of electric operation.

Strong rotation and propulsion:

Our down the hole drill can drill steady and fast in all kinds of rock because of their strong thrust force and compressed air system with high pressure large displacement.

Efficient load-sensing hydraulic system:

The hydraulic system of our down the hole drill is controlled by computer is made of load sensing pumps made in Bosch Rexroth and load sensing proportional valves made in Sauer Danfoss. They are popular with the multiple filter design, high reliability, strong ability that resists pollution, comfortable operation, no-overflow and no-heat.

Humanized operation environment:

Our down the hole drill can work effectively all-weather because of dedusting system with dry mode and wet mode and the heat system under low temperature. They own large view, comfortable double cab that equipped series of equipment such as air conditioner, the wind supercharging machine, double-glass that is used to insulate nose and heat. Due to humanized control console, friendly interface, full range of maintenance aisles, central lubrication and central detection, the operation and maintenance are convenient.

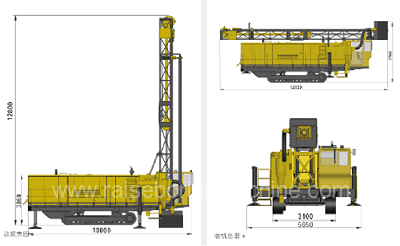

Dimension:
