Model NO.
CY-SD9
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
20 set / Month
Country of Origin:
China
Stock Time:
60 Days
Quantity:

Detailed Product Description

Diameter:

203-254mm

Depth:

18m

Motor Power:

280KW

Power System:

Diesel-electric

Application:

Surface Mining

Control Syatem:

RCS Intelligent Control System

Disel Engine Power:

114KW

Category:

Down The Hole Drill Machine

Crawler Down The Hole Drill Rig 18m Depth 254mm Diameter for Large Mine

Our under-surface boring rigs are designed for high quality production drilling applications for surface mining and large-scale quarry applications. It is a efficient, reliable, safe and comfortable new generation digital mining equipment.

And our down the hole rigs has great efficient which the max depth is 18m, the max hole diameter is 254mm. It also has strong feed force and lifting force, the feed force is 0--74KN, the lifting force is 0--113KN.

The chassis od our down the hole rig is crawler, it is easy to transport.

Main parameters:

UNIT

CY-SD9

Diameter

mm

203-254

Depth

m

18

Drill Angle From Horizontal

o

0-30

Weight

kg

35000

Tractive Force

KN

312

Depth

Km/h

0-0.8/1.6

Grade ability

o

20

Weight

mm

400

Voltage

KV

6 or 10

Total Capacity

KVA

0-0.8/1.6

Motor Powerl

KW

45 (AC380V)

Diesel Engine Power

KW

114

Motor Power

KW

280

Pressure

MPa

2.07

Displacement

m3/min

32.6

Feed Force

KN

0-74

Lifting Force

KN

0-113

Feed Velocity

m/min

0-20

Feed Distance

m

9

Clockwise torque

KN.m

3.6

Anticlockwise torque

KN.m

6

Rotation Velocity

r/min

0-55

Main features:

1:Fast drilling:

Adopting a reinforced high-torque push-rotation propulsion system, our down the hole rig can smooth and fast drilling in all types of rock.

Our rigs use high-flow full-scale load-sensing hydraulic systems and simple and fast positioning rod structure.

2:Long service life:

Our down the hole rig's key components such as diesel engine, hydraulic pump, valve, motor, oil pipe and controller of the drilling rig adopt international famous brands to ensure long-term stable operation of the drilling rig.

Each moving part adopts anti-collision buffer design, and each movement pair adopts graphite-containing material, which prolongs the service life of moving parts.

The hydraulic system uses multiple filtration and explosion-proof tube design to improve the reliability of the hydraulic system

3:Safety:

The malfunction self-locking protection module can prevent damage to the rig and the operator caused by improper operation.

The anti-tip module prevents the rig from tipping over when walking and drilling on uneven and soft ground.

Motor and diesel overload protection modules adjust operating parameters in time to limit load power.

4:Energy conservation:

The full-scale load-sensing program-controlled hydraulic system provides the required pressure and flow for the actuator. The system does not overflow or heat, and the energy-saving effect is obvious.

5:Comfortable:

Our down the hole rigs are equipped with a double cab, large field of view, sound insulation, anti-falling stone, air-conditioned cab for the operator to provide a comfortable working environment.

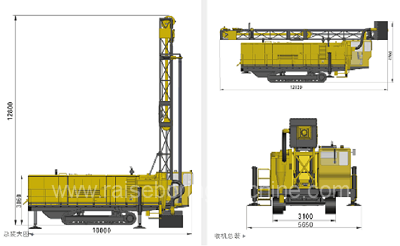

Dimension:
