Model NO.
CY-SD9(3)
Delivery:
FOB
Minimum order quantity:
1 set
Country of Origin:
China
Stock Time:
60 Days
Quantity:

Detailed Product Description

Diameter:

203-254mm

Depth:

18m

Motor Power:

280KW

Application:

Surface Mining

Control Syatem:

RCS Intelligent Control System

Commodity:

Down The Hole Drill Machine

Category:

DTH

Chassise Type:

Crawler

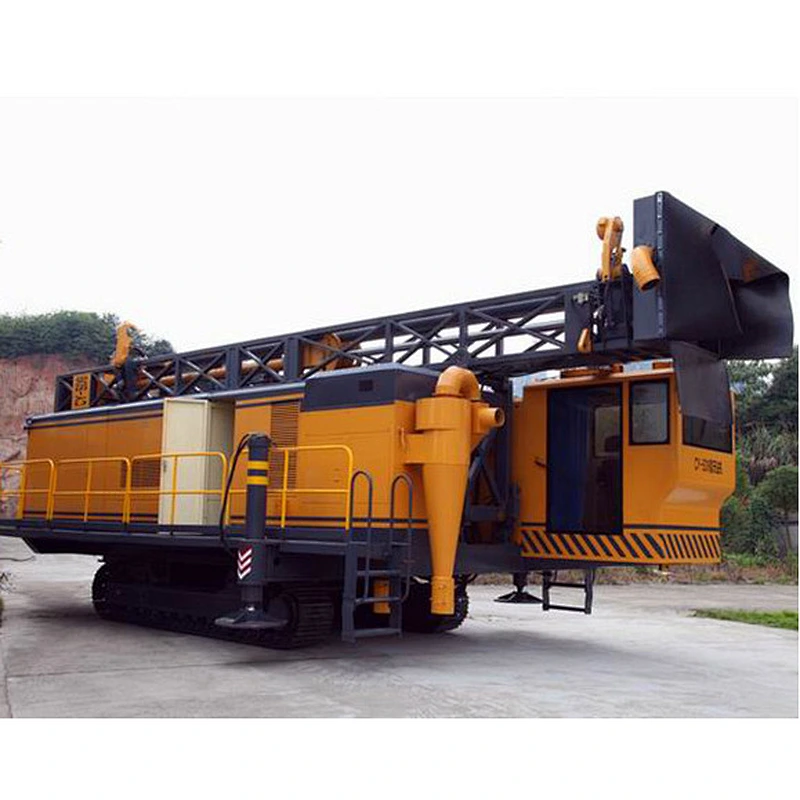

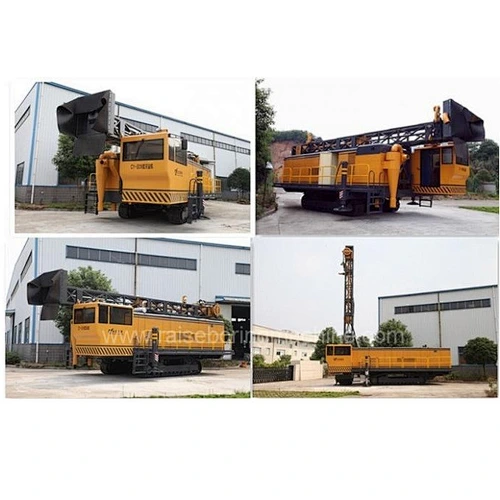

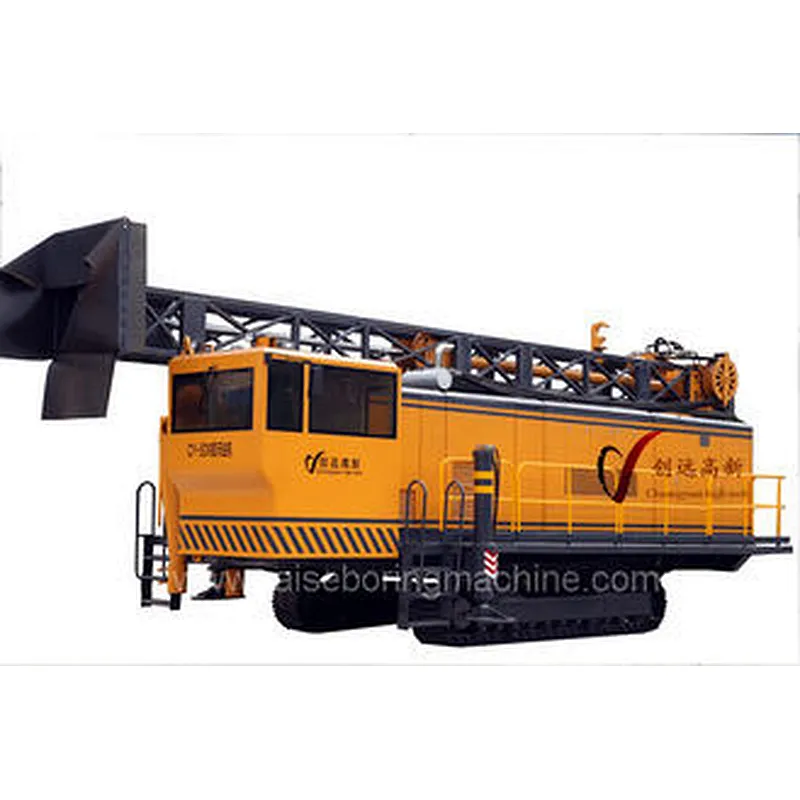

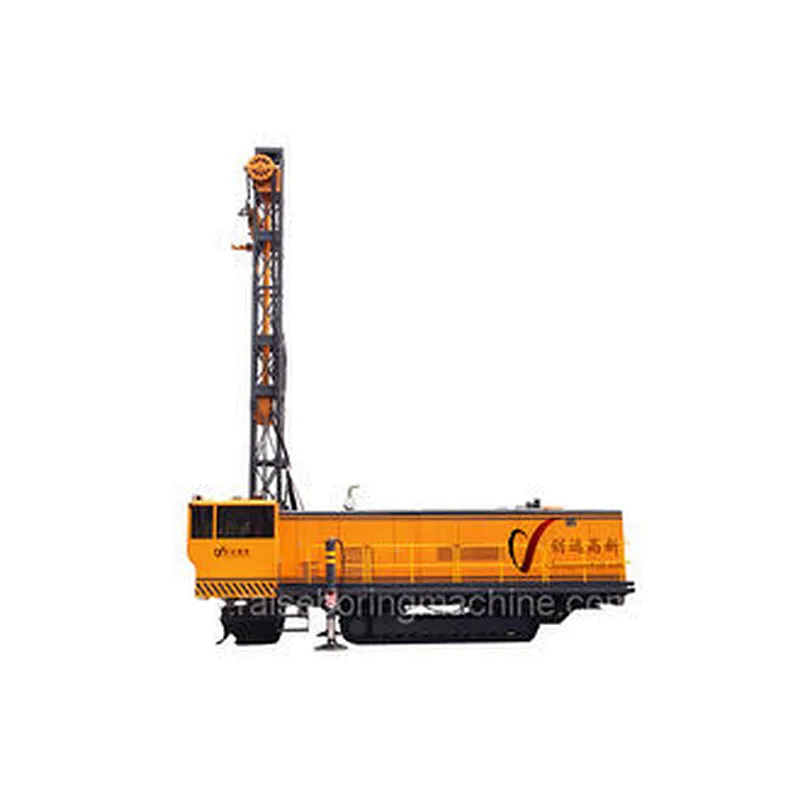

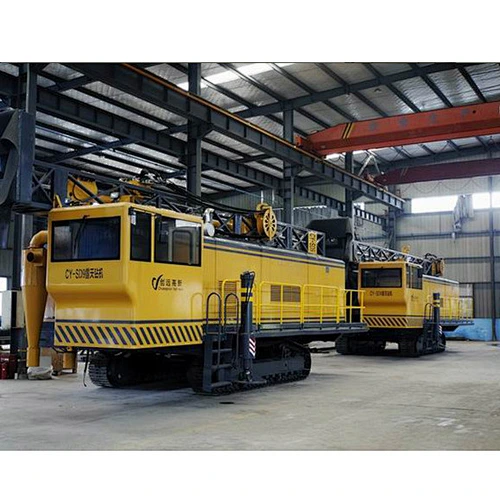

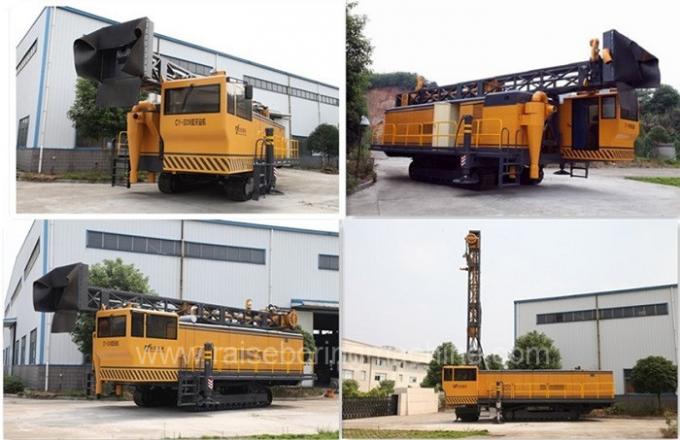

Crawler Hydraulic Down The Hole Drill Rig for Large-scale Quarry with RCS System

Efficient, flexible and large diameter deep hole rock drilling equipment is the key equipment for  surface deep mining.

Our hydraulic down the hole drill rig is mainly used for the mining of large-sclae quarry. And our chassis is crawler, easy to transport.

Our open-air DTH drilling rigs are highly efficient, reliable, energy-saving, environmentally friendly, safe and comfortable, and are ideal for modern digital mines.

Main parameters:

CY-SD9

Diameter

203-254 mm

Depth

18 m

Drill Angle From Horizontal

0-30°

Weight

35000 kg

Tractive Force

312 KN

Depth

0-0.8/1.6 Km/h

Grade ability

20 °

Weight

400 mm

Voltage

6 or 10 KV

Total Capacity

0-0.8/1.6 KVA

Motor Power

45 (AC380V)  KW

Diesel Engine Power

114 KW

Motor Power

280 KW

Pressure

2.07 MPa

Displacement

32.6 m3/min

Feed Force

0-74 KN

Lifting Force

0-113 KN

Feed Velocity

0-20 m/min

Feed Distance

9 m

Clockwise torque

3.6 KN.m

Anticlockwise torque

6 KN.m

Rotation Velocity

0-55 r/min

Main features:

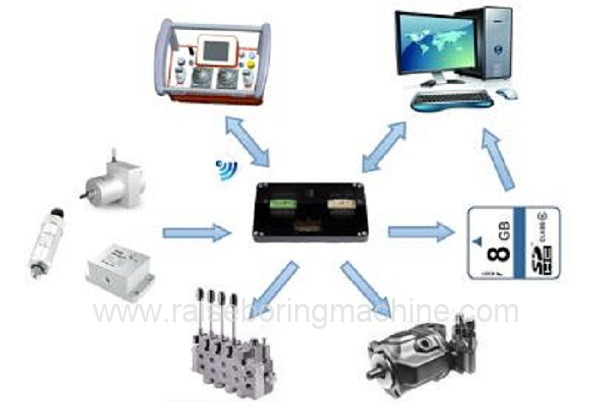

1: Equipped with RCS Intelligent System

Our down the hole rig intelligent control system is the fist high-end system whichis range from the work site to PC client for rigs in China. RCS2.0 is thesecond-generation for RCS, it provides wireless I wired control, safetyprotection, automatic operation, data recording and processing, faultdetection , PC online monitoring, remote monitoring and controlextensions.

Specially developed a mobile terminal for customers free of charge, support including engineering calculation,product review, remote equipment on-line monitoring, remote data out the newspaper quick selection, construction, spare partsmanual online real-time guidance, expert guidance, and other functions.

2:

High efficient

Our rigs can significantly reduce auxiliary work time when working, because it uses a high-flow full-scale load-sensing hydraulic system and a simple lever structure.

Smooth and fast drilling in all types of rock





Safty

The independent technology DCS-1.0 drilling rig program control system performs multiple timely monitoring and protection on the operation, operation and overload of the drilling rig.

The motor and diesel overload protection module adjusts operating parameters in time to limit load power.





Engine saving

Adopting diesel and electric dual-drive design, diesel power is used for emergency take-off and evacuation in long-distance transition and power-off state; electric power is mainly used for walking and drilling operations in the stope, and its power consumption and cost are much lower than Diesel power

The full-scale load-sensing program-controlled hydraulic system provides the required pressure and flow for the actuator. The system does not overflow or heat, and the energy saving effect is obvious.
