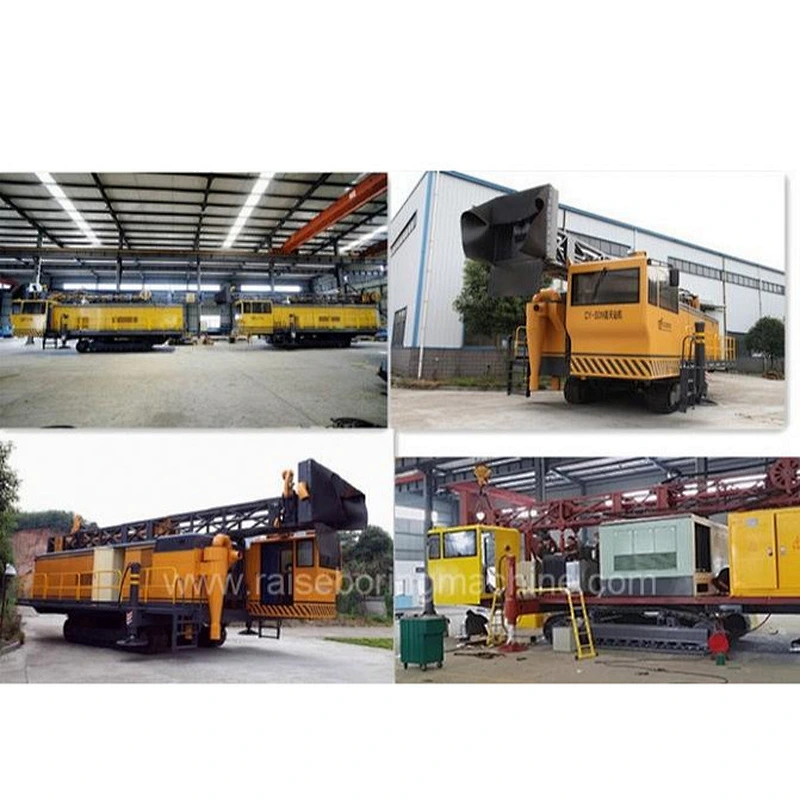

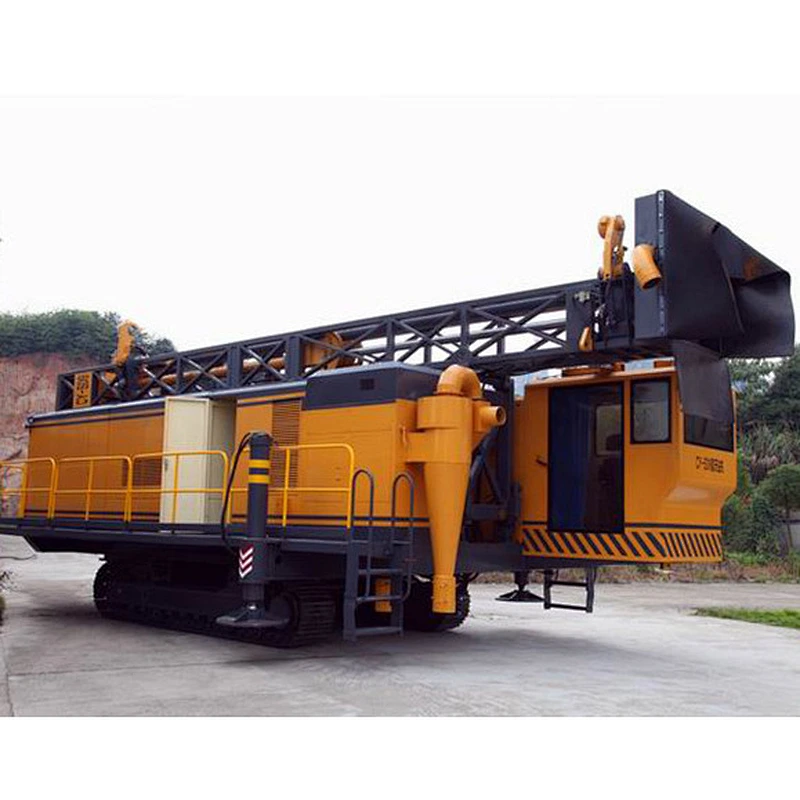

Surface Miningdown The Hole Drilling Machine Diesel / Electic Dual Power System
Surface Miningdown The Hole Drilling Machine Diesel / Electic Dual Power System
Surface Miningdown The Hole Drilling Machine Diesel / Electic Dual Power System
Surface Miningdown The Hole Drilling Machine Diesel / Electic Dual Power System
Surface Miningdown The Hole Drilling Machine Diesel / Electic Dual Power System

Surface Miningdown The Hole Drilling Machine Diesel / Electic Dual Power System

Model NO.:
CY-SD9(1)
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
20 set / Month
Country of Origin:
China
Stock Time:
60 Days
Quantity:

Detailed Product Description

Diameter:

203-254mm

Depth:

18m

Motor Power:

280KW

Clockwise Torque:

3.6KN.m

Power System:

Diesel-electric

Application:

Surface Mining

Control Syatem:

RCS

Feed Force:

74KN

Lifting Force:

113KN

Disel Engine Power:

114KW

Surface Mining Down The Hole Drill Diesel-electic Dual Power System With Rcs

Introduction:

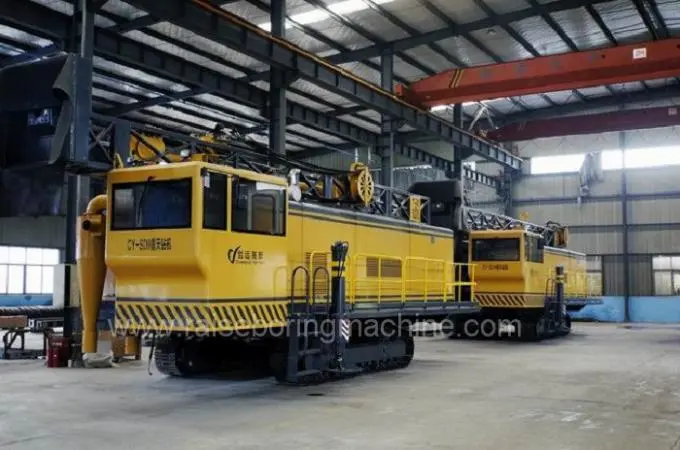

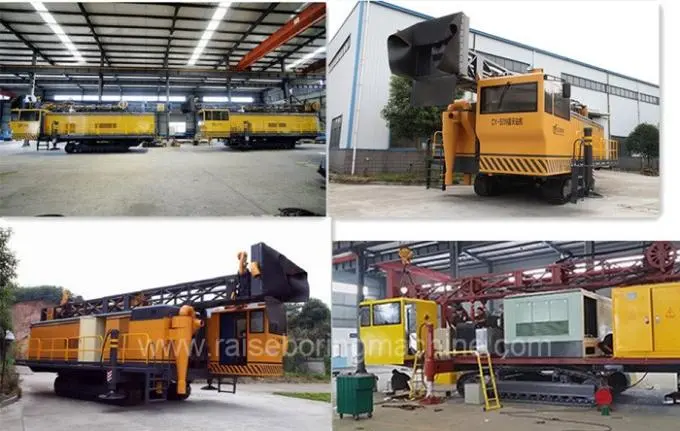

Our surface down the hole rig is designed for use in surface mining and large-scale quarry applications requiring high quality production drilling applications.

And our DTH drilling rig uses advanced hydraulic and program control technology, adopts innovative modular design and manufacturing technology, and is characterized by high efficiency, reliability, energy saving, safety and comfort. It is an ideal supporting equipment for modern digital mines.

Main features:

Energy-saving:

It adopts diesel and electric dual-drive design. Diesel power is used for long-distance walking. Electric power is mainly used for drilling operations. It can not only exert the flexibility of diesel, but also maintain the low cost of electric operation.

RCS intelligent control system:

Our surface down the hole drill has been installed RCS intelligent control system with safety protection, automatic operation, fault diagnose, datastorage, internet communications, digital display and otherfunctions.

Reliable:

The main structure of the rig is made of high-strength steel, which is firm and reliable.

The key components such as diesel engine, hydraulic pump, valve, motor, oil pipe and controller of the drilling rig adopt international famous brands to ensure long-term stable operation of the drilling rig.

Comfort and safety:

Long-distance remote-controlled walking operation ensures safe transfer in disassembled and dangerous conditions.

Remote control is simpler and more convenient, and only one person can complete all the work.

Main parameters:

UNIT

CY-SD7

CY-SD9

Diameter

mm

138-178

203-254

Depth

m

18

18

Drill Angle From Horizontal

o

0-30

0-30

Weight

kg

30000

35000

Tractive Force

KN

312

312

Depth

Km/h

0-0.8/1.6

0-0.8/1.6

Grade ability

o

20

20

Weight

mm

400

400

Voltage

KV

6 or 10

6 or 10

Total Capacity

KVA

500

0-0.8/1.6

Motor Powerl

KW

45 (AC380V)

45 (AC380V)

Diesel Engine Power

KW

97

114

Motor Power

KW

250

280

Pressure

MPa

2.07

2.07

Displacement

m3/min

28.3

32.6

Feed Force

KN

0-74

0-74

Lifting Force

KN

0-113

0-113

Feed Velocity

m/min

0-20

0-20

Feed Distance

m

9

9

Clockwise torque

KN.m

3.6

3.6

Anticlockwise torque

KN.m

6

6

Rotation Velocity

r/min

0-55

0-55
